SECURITY Detection
EMIS®-MAIL
Mail scanner for the detection of letter bombs and IEDs in small parcels
Certified by Governmental Laboratories

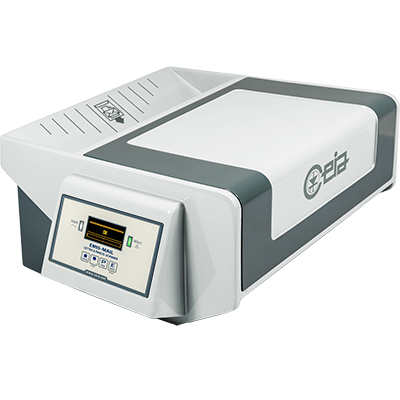

EMIS®-MAIL
Mail scanner for the detection of letter bombs and IEDs in small parcels
- Automatic inspection of parcels and letters up to 45 cm in width and 7.5 cm thickness
- Detection of detonators, batteries, trigger circuits and other metallic components of letter bombs
- No alarm on metal staples, paper-clips and metal binding spirals
- Ergonomic, compact design

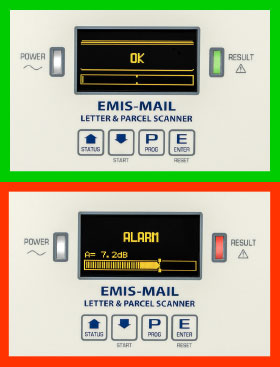

- Confirmation of signal (OK/ALARM) for each package inspected
- Operates on mains power supply and with NiMH rechargeable batteries (opt.)
- No calibration or periodic maintenance required
- Integrated battery charger
- Optional embedded radioactive material detector
Brochures
Manuals
Mail scanner for the detection of letter bombs and IEDs in small parcels
Easy installation and use
The EMIS®-MAIL is designed to detect a wide variety of metal threat items including detonators, batteries, trigger circuits and other metal components of parcel bombs without false alarms for non-threat items such as metal staples, paper clips and metal binding spirals.
The EMIS®-MAIL is very easy to use and provides a fast and automatic alarm/no alarm signal confirmation per each inspected package. Its compact, ergonomic design along with the electric and built-in NiMH rechargeable battery power supply allows for independent operation in a variety of locations. An optional embedded radioactive detector is also available for radioactive material threat detection.
The EMIS®-MAIL is uniquely qualified to operate in a prison or correctional facility environment with specific settings available for prison parcel inspection. Along with meeting the strictest safety and security standards, EMIS®-MAIL is also compliant with the EU Regulation 185/2010 for the inspection of letters and parcels.
Key features of the CEIA EMIS®-MAIL include:- Ease of Installation and Setup
- Ease and Speed of System Use with Limited Screener Training Required
- Automatic Inspection of Parcels and Letters up to 450 mm x 75 mm
- No Calibration or Periodic Maintenance Required
- Independent Operation with Mains Power Supply or Built-in NiMH Rechargeable Batteries
Download Specifications
| General characteristics |
- Automatic inspection of parcels and letters up to 45 cm in width and 7.5 cm thickness
- Detection of detonators, batteries, trigger circuits and other metallic components of letter bombs
- No alarm on metal staples, paper-clips and metal binding spirals
- High inspection speed
- No alarm on metal staples, paper-clips and metal binding spirals
- Very high discrimination of paper-clips, metal staples and binding spirals
- Digital programming with high-resolution OLED graphic display
- Optical and acoustic alarm signalling
- Integrated autodiagnosis system
- Permanent memory storage of operating parameters without back-up batteries
- Independent operation, with mains power supply or batteries (optional)
- Specific Settings available for Prison parcels inspection (Dept. of Justice applications)
- Compliant with NIJ-0602.02 Dept. of Justice Detection requirements
|
| Structure |
- Transit opening 450 mm x 75 mm
- Degree of protection IP40
|
| Dimensions |
|
| Weight |
|
| Power supply |
- 100-277 V~±10%, 47-63Hz with external AC/DC adapter
- Current 1.3 A max
- Battery operation (optional)
- 6 x 1.2V NiMH size D
- Battery life: 12 hours
- Battery-charger incorporated: Recharging time 6 hours
|
| Programming |
- Type
- Local: via integrated keypad
- Remote: via BT wireless communication, RS232
- Memory capacity: 10.000 events
|
| Signalling |
- Audible: Internal buzzer
- Visual
- High-contrast OLED graphic display with bar-graph indication / zone location (pinpointing)
- LED indicators on the control panel
- WHITE: Power supply
- RED: Alarm, Autodiagnosis
- GREEN: OK, Power supply
- BLUE: Alarm, detection of radioactive substances
|
| Security/safety |
- Access to programming protected by password
- Galvanic isolation: operates on Low DC voltage
|
| Communication |
- Incorporated BT wireless communication interface, RS232
|
| Environmental data |
- Operating Temperature: -10 to +50 °C
- Storage Temperature: -25 to +60 °C
- Relative humidity: 5 to 90 %, without condensation
|
| Conformity (Test Reports available upon request) |
- Safety
- EN61010-1
- ACGIH, 2014 Threshold Limit Value (TLV)
- IEEE C95.1-2005
- EC-Rec. 1999/519/EC
- EN 50364:2010
- EMC
- RED
- EN300330: Short Range Devices (SRD)
|
| NATO stock number |
|
The EMIS®-Mail devices are designed to be used in:- Government buildings
- Diplomatic Missions
- Public Authorities
- Critical Infrastructures
- Private Corporations Mailrooms
For the security screening of:
Radiation detection module
Optional upgrade for the detection of radioactive sources is available on demand. The gamma alarm indication includes the activity level (low/medium/high) and the CPS value (counts per second). Analysis time: 5 seconds.
Part Code: 67197

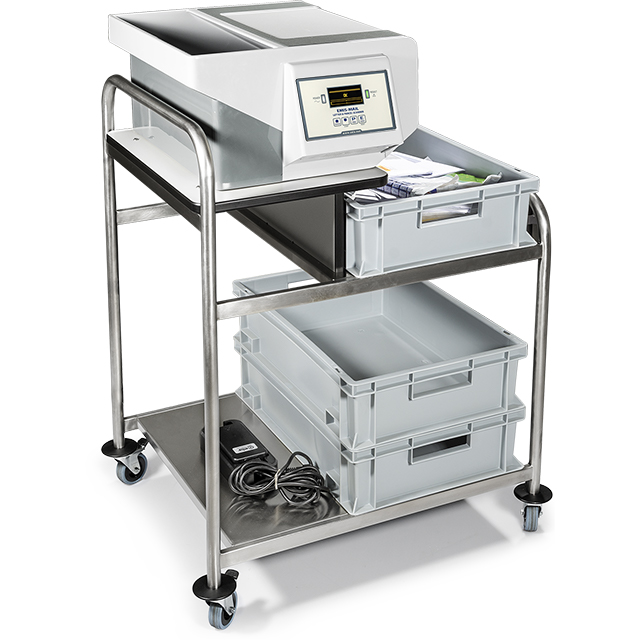

EMIS-MAIL Mobile Station
Part Code: # 76332

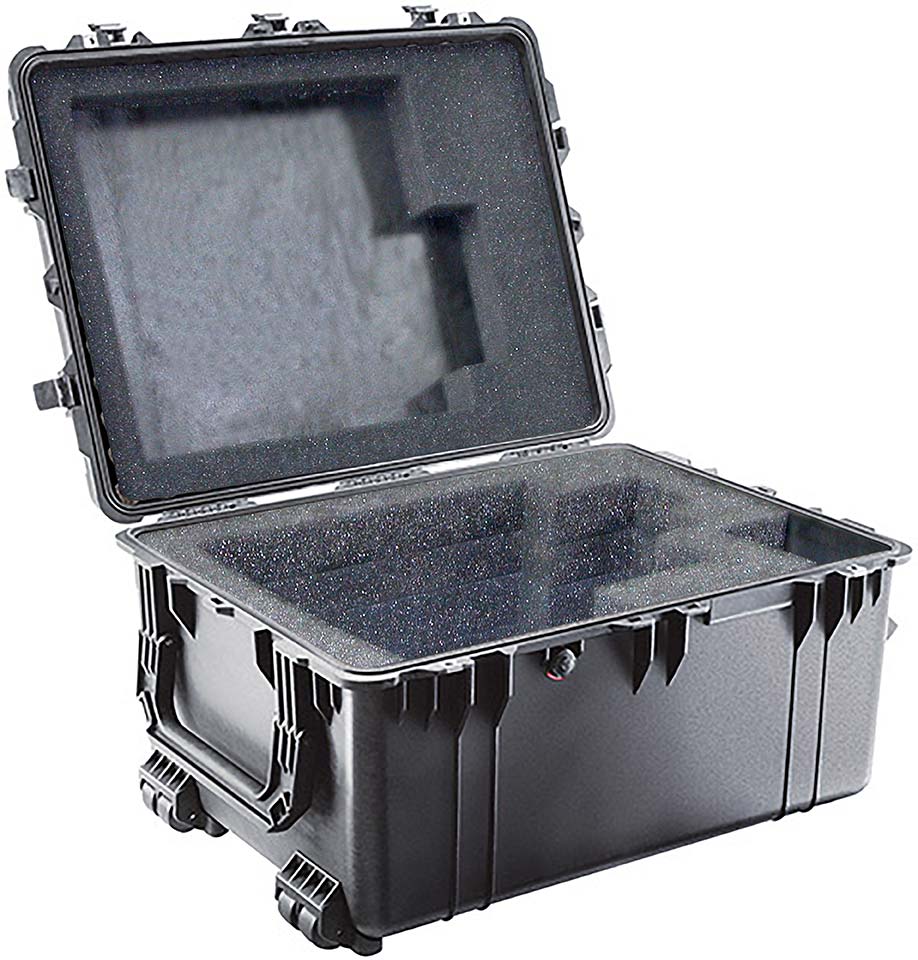

Transport Case
Part Code: # 67226
