SECURITY Detection


SMD®600 Plus

Two-in-one Metal Detector


Certified by Governmental Laboratories
NIJ 0601.02

compliant



Company Presentation
ISO 9001 Certification

  • High sensitivity: fully compliant with the NIJ-0601.02 Law Enforcement Standard
  • High discrimination: Compliant with and Certified to the strictest Standards for Airport security screening
  • The SMD600 Plus is the first Metal Detector in the market fully compliant with the NIJ-0601.02 Standard, as required in very high sensitivity applications, which also allows very high throughput in high security public screening checkpoints.


Brochure
Click To View English - US Brochure
Click To View Spanish Brochure




Manuals



SMD600 Plus

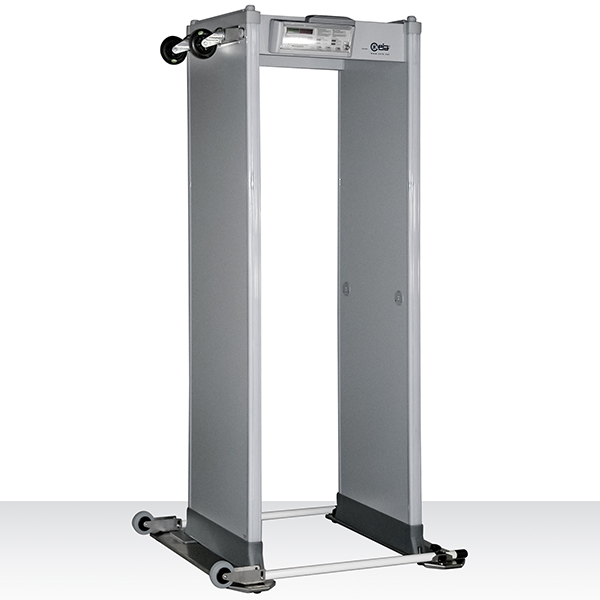

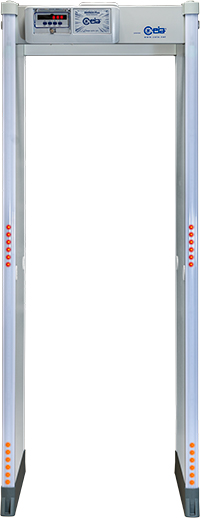

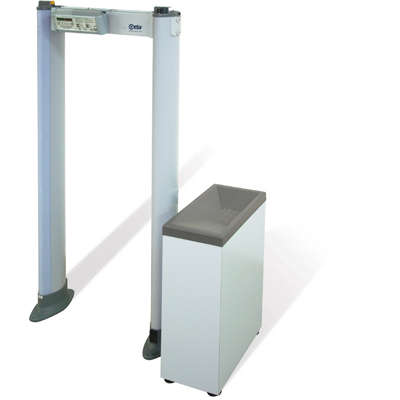

The SMD®600 Plus is a very high sensitivity Metal Detector that also offers characteristics of high discrimination and high detection uniformity.

SMD600 Plus - detail

CEIA provides full operational and technical training support by certified personnel either at CEIA facility or at customer site

High sensitivity

  • Quick, accurate analysis of all parts of the body of people in transit, from the shoe level to the crossbar
  • Built-in programs to screen visitors and staff for weapons and contraband
  • Met-Identity technology for Identification of Threat Composition
  • Accurate pinpointing of individual and multiple metal targets


High throughput

  • Cutting-edge discrimination technology allows personal effects to be ignored, creating rapid transit flow
  • No need to remove items such as belts, coins, keys, jewelry, watches, wallets, etc.
  • Low nuisance alarm rate even at the strictest Security Levels
  • High transit flow rates and the minimum need for intervention by inspection personnel

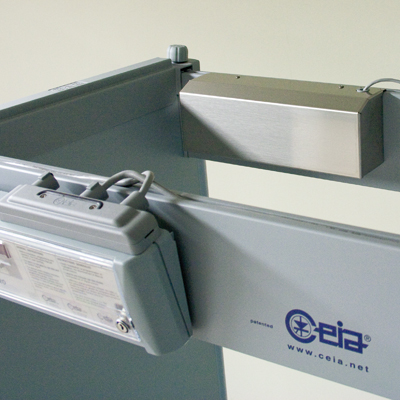

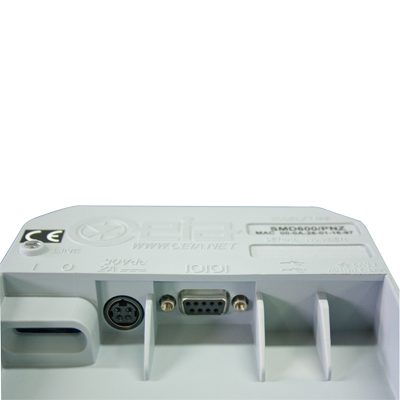

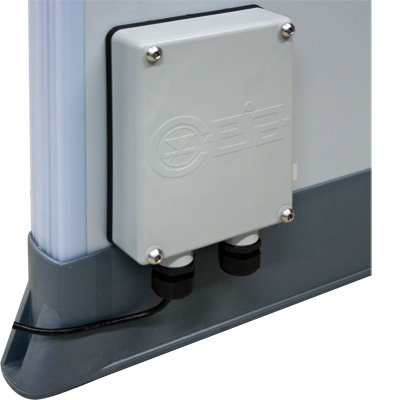

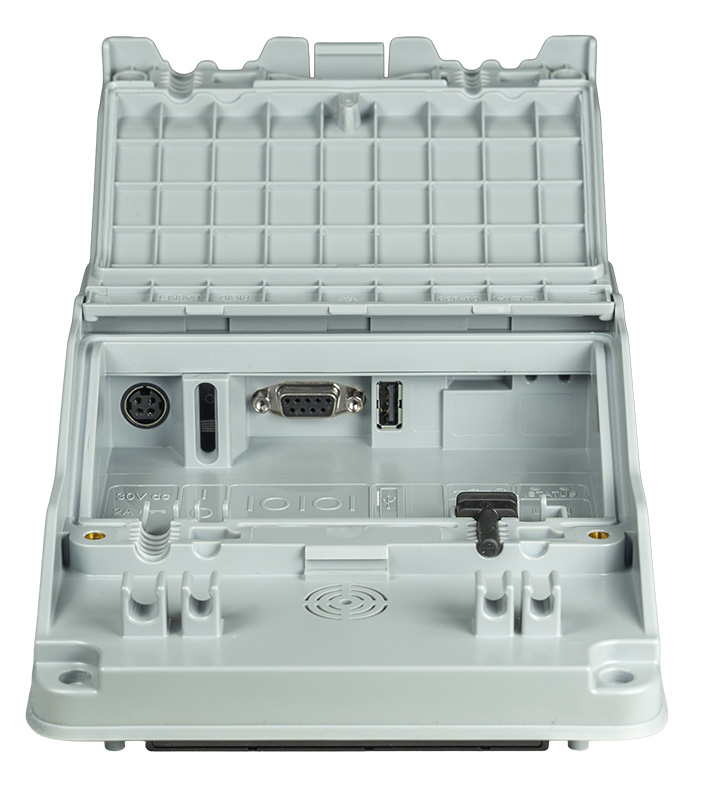

New certified ip66 control unit

  • New integrated design
  • Total compatibility with previous IP20 (plastic) and IP65 (stainless steel) control units
  • Robust structure through the use of high-performance polymers for the construction of housing
  • Waterproof / Dustproof: IP66 compliant (IEC 60529)
  • Exceptional impact resistance at low and high temperatures and resistance to corrosion from atmospheric agents
  • Display made with specific polymer to improve the visibility of the LEDs by increasing the definition

    Unique alarm signalling

    • Dual Side 20 x 2 localization zones
    • High visibility of the control unit and of the zone indication, independent from the operator position and the installation environment
    • Flexible Acoustic Alarm Signaling System: 10 Continuous and Pulsed Tones; 34 Special Sounds
    • 10 Alarm Volume Levels
    • Very High Precision Transit Counter

      Most powerful and versatile security features

      • Up to 50 built-in Security Programs: Up to 30 International Standards; Up to 20 Customizable Levels

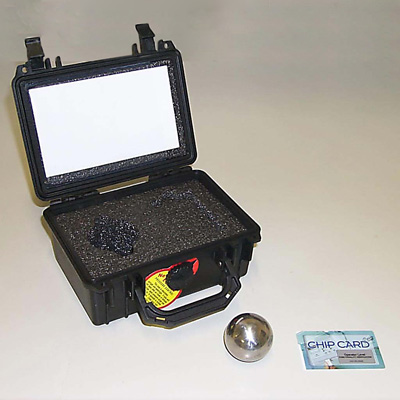

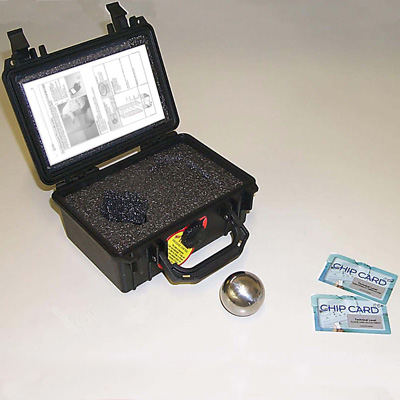

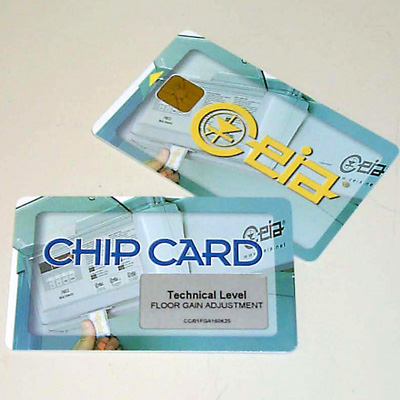

      • Chip Card system for fast, simple and secure parameter changes (i.e. alarm volume and tone, counter reading, etc.) and security level selection.
      • Any security standard can be enhanced with selectable random alarm probability


      MI2 sensor

      SMD®600 Plus can be upgraded anytime either with MI2 Sensor for superior smartphone and cellphone detection, or with TDU including advanced IR processing for fully automatic, highly selective and precise detection of maximum facial temperature measurements even in harshest environmental conditions.

      The SMD®600 Plus with integrated MI2 sensor provides unmatched versatility in its ability to screen people in applications that require simultaneous detection of all metal (magnetic and non-magnetic) fi rearms and cellphone/smartphone devices, including the most miniaturized, lowmetal content versions.

      In this configuration both panels of the archway are equipped with dual color light bars (red and yellow colors) and 4-beam photocells modules.

      TDU Thermal Detection Unit

      The TDU (Thermal Detection Unit) is an upgrade sensing kit for covid screening compliance:
      • Simultaneous threat and fever detection on all screened persons
      • Accurate person measurement using an infrared camera with automatic determination of the highest temperature

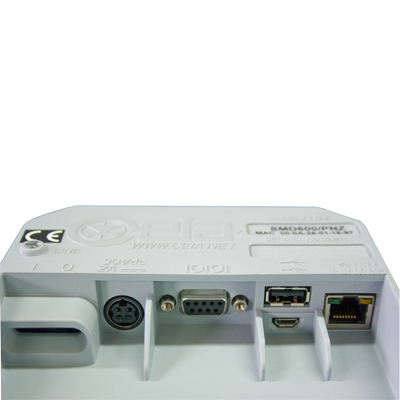

      Integrated web-server & logger

      • Monitor the status of Metal Detector network in real time
      • Centralized Setting of the Metal Detectors’ working parameters
      • Transits flow monitoring
      • Report on number of people screened and alarm rates automatically
      • Detailed reporting of the transits data and the Security Device configuration data
      • Remotely control and verify the security level
      • No server or specific client software required, only a web browser
      • Zero configuration network for simple setup
      • 2 x Ethernet 100base-TX
