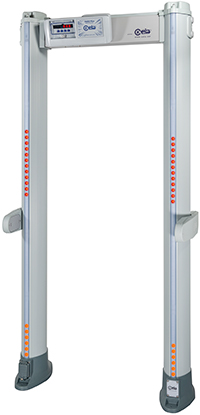

This is a zonal model featuring modern, elegant lines, and can be inserted into the most prestigious surroundings with the minimum visual impact. Easy to assemble and transport, the PMD2 Plus Elliptic^® is also recommended for portable use in temporary or itinerant installations. The technology employed allows high discrimination to be achieved even at stringent security levels.

The system allows the Head of Security to set Security Level quickly, reliably and without having to program the device in any way.

Most powerful and versatile security features

Up to 50 built-in Security Programs:

Up to 30 International Standards
Up to 20 Customizable Levels

Setting the Security Levels could not be easier and more versatile than in the PMD2 Plus.

Users can choose directly from the known International Standards or request implementation of a Standard personalized to their own requirements. Users can also create their own program and save it in internal memory for later use.

Chip Card system for fast, simple and secure parameter changes (i.e. alarm volume and tone, counter reading, etc. and security level selection.

One unique characteristic of the CEIA metal detectors is the chip-card system, which allows Security Management to set the Security Level quickly, reliably and without having to program the device in any way.

Any security standard can be enhanced with selectable random alarm probability.

Detection of all metallic threat items

Capability to detect the full range of metal weapon threats even within body cavities
Quick, accurate analysis of all parts of the body of people in transit, from the shoe level to the crossbar
Guaranteed coverage for all orientations and locations, never in need of calibration
Met-Identity technology for Identification of Threat Composition

High discrimination & throughput

Cutting-edge discrimination technology allows personal effects to be ignored, creating rapid transit flow
No need to remove items such as belts, coins, keys, jewelry, watches, wallets, etc.
Better Discrimination = Shorter Lines and/or Less Staffing

The PMD2 Plus has a very low nuisance alarm rate even at the strictest Security Standards requested today, and therefore allows high transit flow rates and the minimum need for intervention by inspection personnel.

Immunity to external interferences

Exceptional immunity to environmental interferences makes the Metal Detector easy to use even when electrical noise is encountered.

New Certified IP66 Control Unit

New integrated design
Total compatibility with IP20 (plastic) and IP65 (stainless steel) control units
Robust structure through the use of high-performance polymers for the construction of housing
Waterproof / Dustproof: IP66 compliant (IEC 60529)
Exceptional impact resistance at low and high temperatures and resistance to corrosion from atmospheric agents
Display made with specifi c polymer to improve the visibility of the LEDs by increasing the defi nition and clarity

Unique alarm signalling

High visibility of the control unit and the zone indication independent from the operator position and the installation environment
Flexible Acoustic Alarm Signaling System: 10 Continuous and Pulsed Tones; 34 Special Sounds
10 Alarm Volume Levels
Very High Precision Transit Counter

Accurate signaling is essential for best operation and flow management. The detector provides the user with fully-programmable signaling. Both entry-points can indicate with a high level of accuracy, even simultaneously, the vertical and lateral areas of transit of the threats detected, and can also be configured as ’traffic lights’ to control transits through the detector.

Rapid installation

One touch guided automatic installation (OTS)
Innovative function assisting the installation through an automatic step-by-step procedure
Continuous self diagnostics assures monitored performance reliability

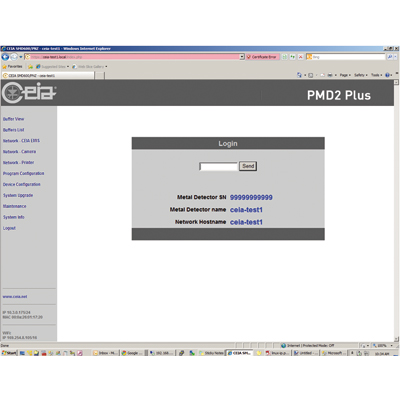

Integrated Web-Server & Logger

Monitor the status of Metal Detector network in real time
Centralized Setting of the Metal Detectors’ working parameters
Transits flow monitoring
Report on number of people screened and alarm rates automatically
Detailed reporting of the transits data and the Security Device configuration data
Remotely control and verify the security level
No server or specific client software required, only a web browser
Zero configuration network for simple setup
2 x Ethernet 100base-TX

Download Specifications

Gate structure

State-of-the-art, robust and washable panels or compact elliptical columns
Protected against aging, weather and wear

Operational features

High discrimination and transit flow rates five or more times greater than other metal detection systems
Quick reset time as short as 0.2 seconds for high throughput rate
Very high detection speed (up to 50" ft/sec.)
Built-in operational functional verification
One-touch key reading of inbound, outbound and Security Level Data

Quality

Continuous self diagnostic system
Proven reliability
No periodic re-calibration and preventive maintenance required
No scheduled maintenance
Fully digital design

Alarm signaling

Multi-zone display bar for “height on person” localization
4 light bars with selectable entry/exit and pacing indication
Green and red metering signals proportional to the mass of the detected target
10 selectable continuous and pulsed tone plus 34 special tones
10 selectable sound intensities ranging from 0 to 90 dbA at 3.3 ft

Type of signaling

Fixed or proportional to the mass in transit - visible from 19.7 ft under lighting of 4000lux
60 distinct zones (20 vertical x 3 lateral) entry and exit side

Programming

Up to 50 built-in Security Programs
Remote via Infrared Remote Control Unit, BT or Ethernet 10/100 base T (option) interface
Security level: International Standard (IS) command / Chip card
Local by Control Unit alphanumeric display and keyboard
Programming and chip card access protected by user and super-user passwords

Environmental data

Power Supply : 100…277V~ }10%, 47…63Hz, 40 VA typical consumption
Operating temperature: -4°F to 149°F (-34°F to 158°F upon request)
Storage temperature: -34°F to 158°F
Relative humidity: 0 to 95% (without condensation)

Installation data

Automatic synchronization between two or more metal detectors with distance of down to 2" without the use of external cablesAutomatic Installation function (OTS)

Certification and compliance

Compliant with and certified to the applicable Standards for Enhanced Metal Detectors (EMD)
Compliant with the applicable electromagnetic Standards on Human Exposure and Pacemaker Safety
Compliant with all Airport Security Standards worldwide
Compliant with applicable International Standards for electrical safety and EMC

Comprehensive support

CEIA USA provides full operational and technical training support by certified personnel either at CEIA facility or at customer location.

Chip cards

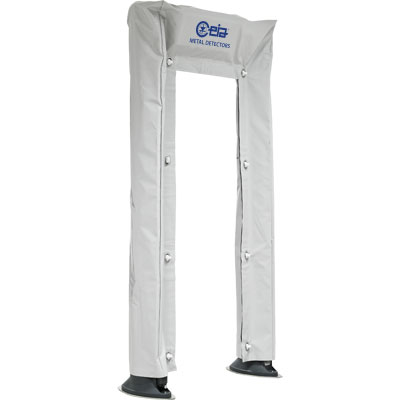

Elliptic Gate Protective Cover

Protective Cover, designed to protect the gate in outdoor permanent installations, during inactivity periods, from water, ultraviolet rays, humidity, dirt, sand, thermal temperature spikes and other environmental hazards.

The Protective Cover is column-fitted, durable, and weatherproof. Yet it is also breathable, allowing moisture vapor to evaporate from underneath.

By reducing the need for maintenance, the cover improves readiness for the Detector and its operators.

The cover is simple to install and to remove.

Example of operations video

Part Code: # 64395

IRC-1

Part Code: # 47180

Kit OFV

This test can be used by the operator to check the functionality of the metal detector quickly.

AISI 420 sphere, ø44.45mm
Programming chip card
Instructions for use
Carrying case

MBSU-2

Independent, long life power supply in weatherproof stainless steel case, with embedded fast charger

Part Code: # MBSU-2

MD-Scope

Part Code: # MD-SCOPE2

MD-WHK

Part Code: MD-WHK

Metal Detector Divesting Table

This accessory, designed to be positioned next to the walk-through Metal Detector, offers a surface for the temporary deposit of metal personal effects which are not of a dubious nature and thus not required to undergo X-ray analysis (coins, keys etc.).

The special shape of the surface helps to keep the objects deposited there away from the Metal Detector so as to avoid any possible interference.

Dimensions: 610 x 360 x 975 mm.

Part Code: 610mm # 18074
1200mm # 39491
Outdoor version 1200 mm # 67021

RCU2

Control unit for full remote access, including alarm signaling and programming of CEIA Walk Through Metal Detectors. The connection is performed via BT wireless communication (standard) or via cable connection.

Part Code: # RCU2

RRU

Remote relay unit (RRU) to repeat the detection alarms of the gate through a relay contact. The RRU module can be used for integration of the Metal Detector in interlocked door systems.

Part Code: # RRU

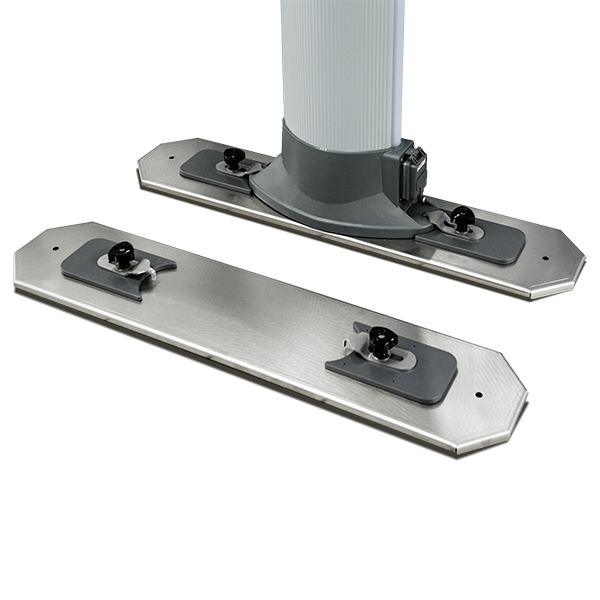

Stabilizing Plates

Part Code: Standard version # 46705
Plastic stabilizing plates # 46938
Anti-tilting metal plates # 70914

Test samples kit Gun assembled

Reference Samples for accurate verification of the Security Level. Includes guided procedures and certificate of calibration.

Part Code: # EMD-SK-GAL

Test samples kit Gun Disassembled

Reference Samples for accurate verification of the Security Level. Includes guided procedures and certificate of calibration.

Part Code: # EMD-SK-GDML

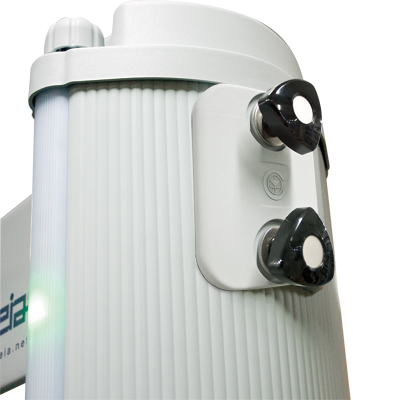

Tool-free assembly kit

This accessory allows the detector to be assembled and disassembled quickly and without tools.

Part Code: # 55699

Upper Connection Module

This extension cable allows the connection of power supply and serial communication to personal computers or CEIA accessories, such as RCU-2.

Part Code: # 46650

Waterproof Mains Power Supply

100W IP67 power supply for heavy duty applications.
Vandal resistant.
It is provided with flanges for simple installation.

Part Code: # 43564

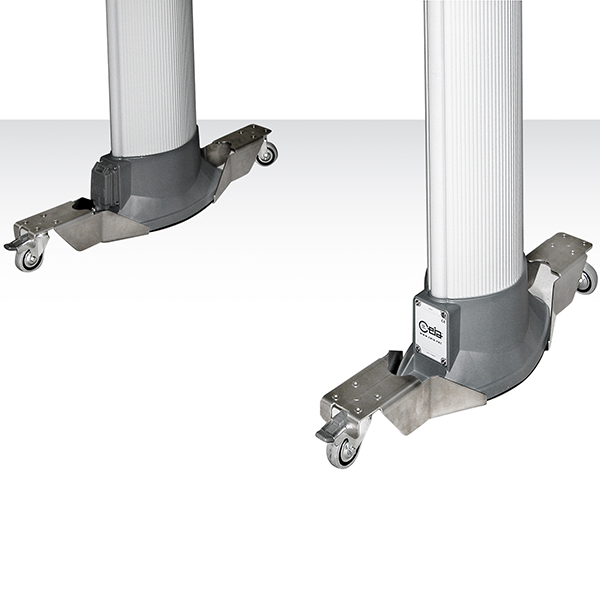

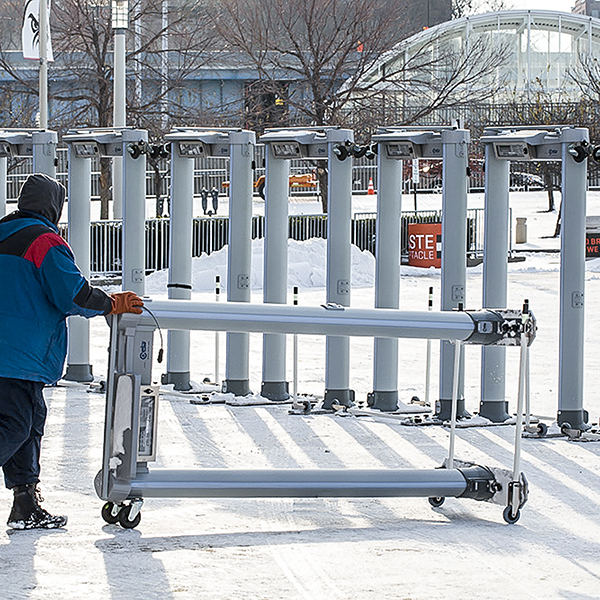

Wheel Kit - Long Range

The Transport and Stabilizing Device allows the Elliptic and Panel WTMDs to be easily transported with no need for the operator to disassemble the archway. In addition, the it provides archway stability.

The Device is applicable to Elliptic and Panel-Shape Walk-Through Metal Detectors.

The system has been found compliant for safety with applicable parts (a,b) of par. 7.4 Stability of the Standard EN61010-1:2010 (IEC61010-1:2010). However, it is always recommended that the archway is secured to the fl oor by means of anchors.

Part Code: # 70569

Wheel Kit - Short Range

Part Code: # 77318
