Strict requirements and detection needs call for security checkpoints to perform efficiently even under very challenging conditions. The PMD2 Plus/EZHD detects fi rearms and knives, even when they are hidden within body cavities, and accurately indicate the position of the threat, its intensity and its prevalent composition. The PMD2 Plus/EZHD has a very low nuisance alarm rate even at the strictest Security Standards requested today, and therefore allows high transit flow rates and the minimum need for intervention by inspection personnel.

4 Multi-Zone Display Bars: light bars indicate metal position vertically and laterally and can also show pacing lights

Detection of all metallic threat items

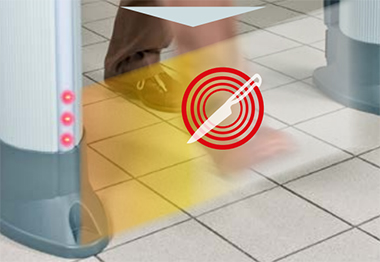

Capability to detect the full range of metal weapon threats even within body cavities
Quick, accurate analysis of all parts of the body of people in transit, from the shoe level to the crossbar
Guaranteed coverage for all orientations and locations, never in need of calibration
Met-Identity technology for Identification of Threat Composition

High discrimination & throughput

Cutting-edge discrimination technology allows personal effects to be ignored, creating rapid transit flow
No need to remove items such as belts, coins, keys, jewelry, watches, wallets, etc.
Better Discrimination = Shorter Lines and Less Staffing

Most powerful and versatile security features

Up to 50 built-in Security Programs: Up to 30 International Standards; Up to 20 Customizable Levels
Chip Card system for fast, simple and secure parameter changes (i.e. alarm volume and tone, counter reading, etc.)and security level selection.
Any security standard can be enhanced with selectable random alarm probability

Unique alarm signaling

High visibility of the control unit and of the zone indication, independent from the operator position and the installation environment
Flexible Acoustic Alarm Signaling System: 10 Continuous and Pulsed Tones; 34 Special Sounds
10 Alarm Volume Levels
Very High Precision Transit Counter:
- In-Bound, Out-Bound transits
- Alarm Rate calculation
- Automatic Compensation for repeated transits of the same person

Immunity to external interferences

Exceptional immunity to environmental interferences makes the Metal Detector easy to use even when electrical noise is encountered.

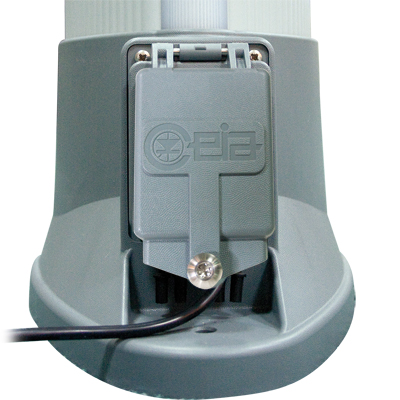

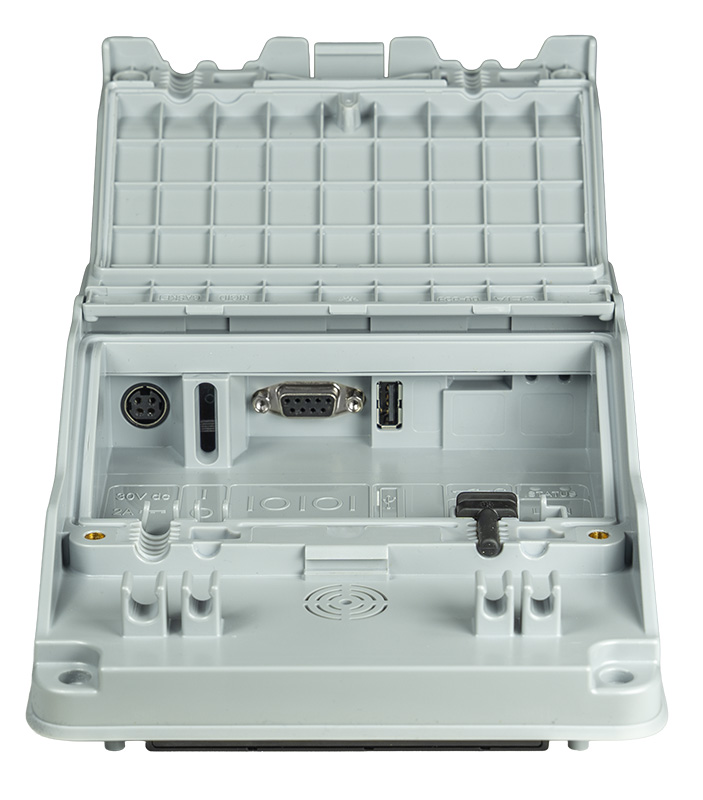

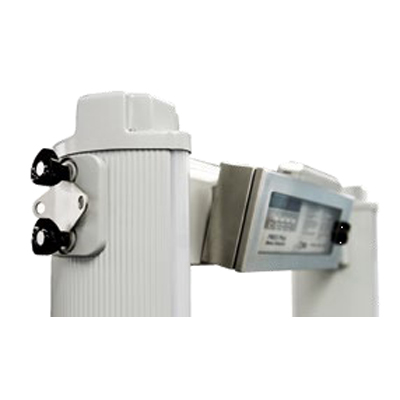

New certified IP66 control unit enclosure

Total compatibility with previous control units
Robust structure through the use of high-performance polymers for the construction of housing
Waterproof / Dustproof: IP66 compliant (IEC 60529)
Exceptional impact resistance at low and high temperatures and resistance to corrosionfrom atmospheric agents
Display made with specific polymer to improve the visibility of the LEDs by increasing the definition and clarity

Rapid installation

One touch automatic installation (OTS)
Highly adaptable for installation in all environments
Automatic Compensation function to adjust for windy environments
Continuous self diagnostics assure monitored performance reliability
Upper tie-down points available for stabilization in case of strong winds (up to 40 km/h)

Breakthrough value

Superior CEIA reliability slashes total cost of ownership
No periodic re-calibration and preventive maintenance required
Monolithic construction, high protection degree against dust and water and high sturdiness stability

Download Specifications

Gate structure

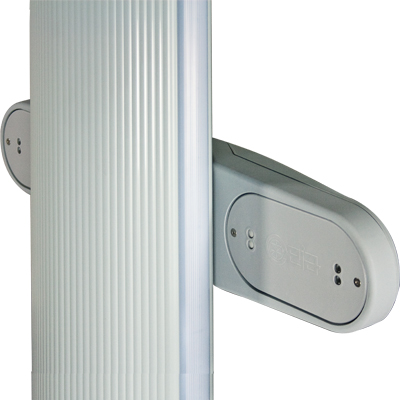

State-of-the-art, robust and washable compact elliptical columns
Protected against aging, weather and wear

Operational features

High discrimination and transit flow rates five or more times greater than other metal detection systems
Quick reset time as short as 0.2 seconds for high throughput rate
Very high detection speed (up to 15 m/sec.)
Built-in operational functional verification
One-touch key reading of inbound, outbound and Security Level Data

Quality

Continuous self diagnostic system
Proven reliability
No periodic re-calibration and preventive maintenance required
No scheduled maintenance
Fully digital design

Alarm signaling

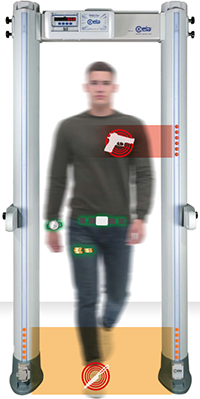

Multi-zone display bar for “height on person” localization
4 light bars with selectable entry/exit and pacing indication
Green and red metering signals proportional to the mass of the detected target
10 selectable continuous and pulsed tone plus 34 special tones
10 selectable sound intensities ranging from 0 to 90 dbA at 1m

Type of signaling

Fixed or proportional to the mass in transit - visible from 6m under lighting of 4000lux
60 distinct zones (20 vertical x 3 lateral) entry and exit side

Programming

Up to 50 built-in Security Programs

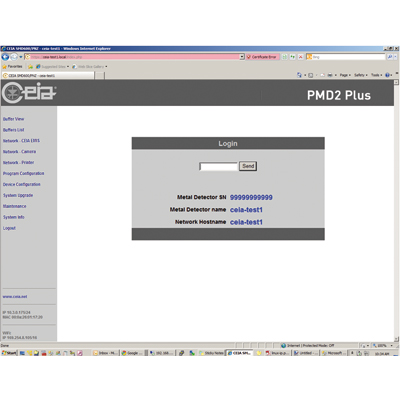

Remote via Infrared Remote Control Unit, BT or Ethernet 10/100 base T (option) interface
Security level: International Standard (IS) command / Chip card
Local by Control Unit alphanumeric display and keyboard
Programming and chip card access protected by user and super-user passwords

Environmental data

Power Supply : 100…277V~ ±10%, 47…63Hz, 40 VA typical consumption
Operating temperature: -20°C to +65°C (-37°C to +70°C upon request)
Storage temperature: -37°C to +70°C
Relative humidity: 0 to 95% (without condensation)

Installation data

Automatic synchronisation between two or more metal detectors with distance of down to 5 cm without the use of external cables
Automatic Installation function (OTS)

Certification and compliance

Compliant with and certified to the applicable Standards for Enhanced Metal Detectors (EMD)
Compliant with the applicable electromagnetic Standards on Human Exposure and Pacemaker Safety
Compliant with all Airport Security Standards worldwide
Compliant with applicable International Standards for electrical safety and EMC

Comprehensive support

CEIA provides full operational and technical training support by certified personnel either at CEIA facility or at customer site.

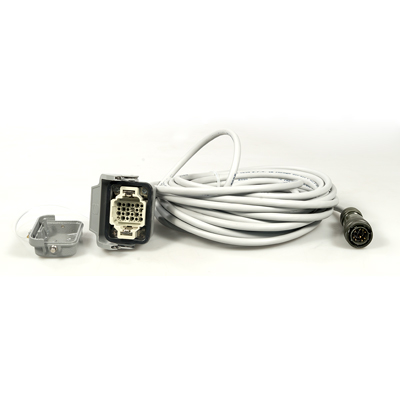

Ceiling power adapter

Part Code: # 63732

Chip cards

Elliptic Gate Protective Cover

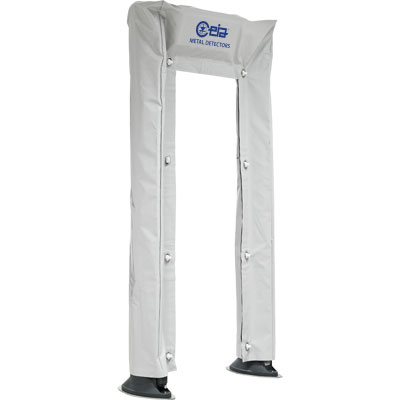

Protective Cover, designed to protect the gate in outdoor permanent installations, during inactivity periods, from water, ultraviolet rays, humidity, dirt, sand, thermal temperature spikes and other environmental hazards.

The Protective Cover is column-fitted, durable, and weatherproof. Yet it is also breathable, allowing moisture vapor to evaporate from underneath.

By reducing the need for maintenance, the cover improves readiness for the Detector and its operators.

The cover is simple to install and to remove.

Example of operations video

Part Code: # 64395

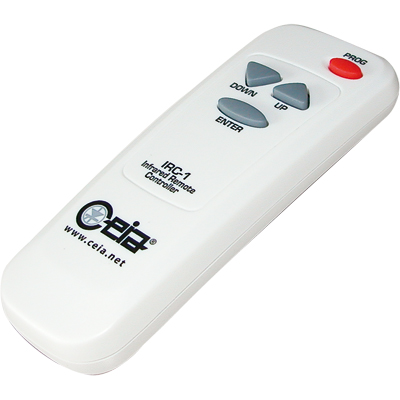

IRC-1

Part Code: # 47180

Kit FGA and TFV

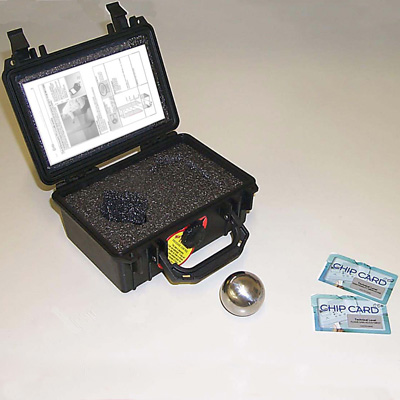

This test can be used by technical personnel to check the functionality of the metal detector quickly.

AISI 420 sphere, ø44.45mm

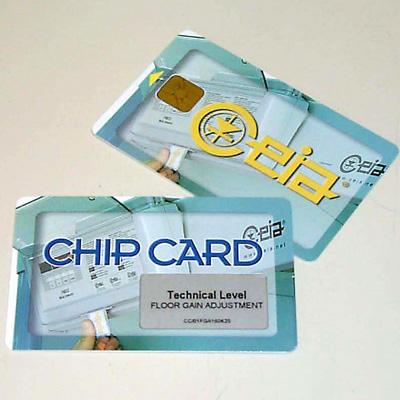

FGA test programming chip card ("Technical Level - FLOOR GAIN ADJUSTMENT")
TFV test programming chip card ("Technical Level - FUNCTIONALITY VERIFICATION")
Instructions for use
Carrying case

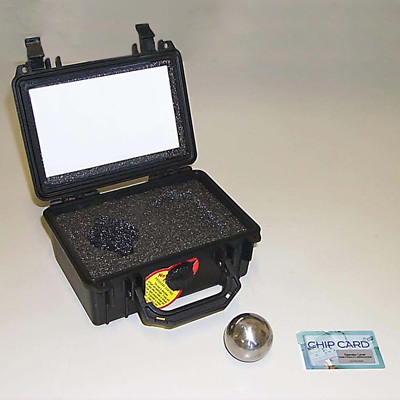

Kit OFV

This test can be used by the operator to check the functionality of the metal detector quickly.

AISI 420 sphere, ø44.45mm
Programming chip card
Instructions for use
Carrying case

MBSU-2-HD

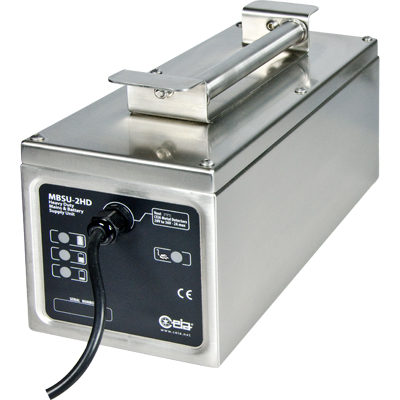

Separate, compact long life power supply in stainless steel case and high protection degree (IP65), with embedded fast charger:

13.6 hours typical (10 hours minimum) continuous operation
6.5 hours typical charging time

Part Code: # MBSU-2-HD

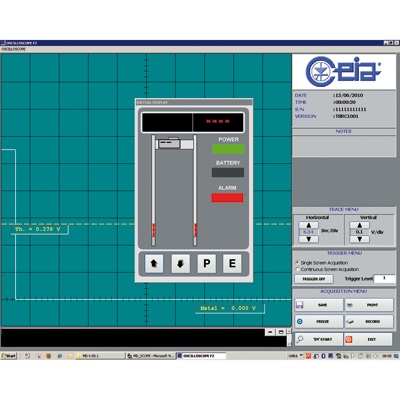

MD-Scope

Part Code: # MD-SCOPE2

MD-WHK

Part Code: MD-WHK

Metal Detector Divesting Table

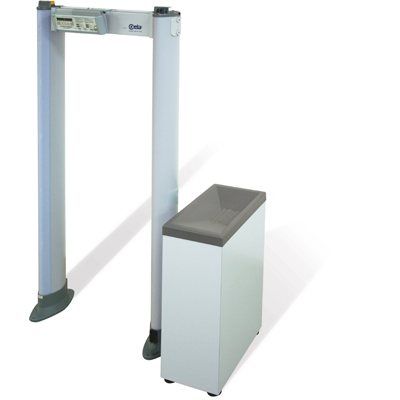

This accessory, designed to be positioned next to the walk-through Metal Detector, offers a surface for the temporary deposit of metal personal effects which are not of a dubious nature and thus not required to undergo X-ray analysis (coins, keys etc.).

The special shape of the surface helps to keep the objects deposited there away from the Metal Detector so as to avoid any possible interference.

Dimensions: 610 x 360 x 975 mm.

Part Code: 610mm # 18074
1200mm # 39491
Outdoor version 1200 mm # 67021

RCU2

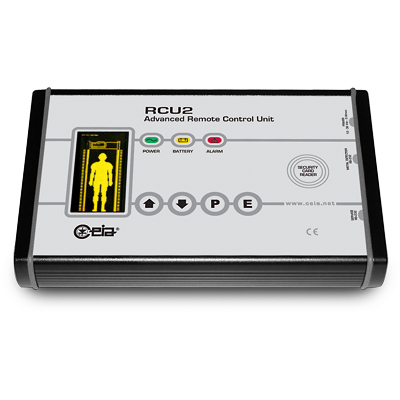

Control unit for full remote access, including alarm signaling and programming of CEIA Walk Through Metal Detectors. The connection is performed via BT wireless communication (standard) or via cable connection.

Part Code: # RCU2

Stabilizing Plates

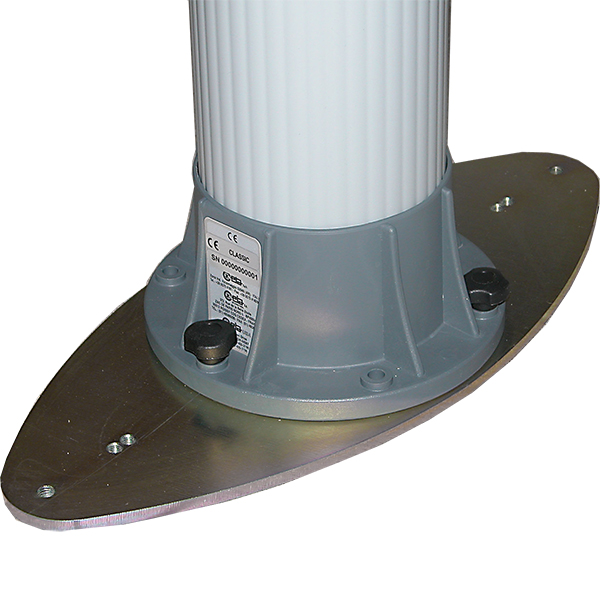

Comfortable alternative to direct floor mounting.

Part Code: # 64355
Mobile # 46938

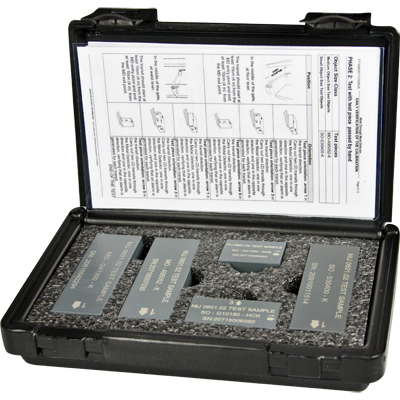

Test samples kit Gun assembled

Reference Samples for accurate verification of the Security Level. Includes guided procedures and certificate of calibration.

Part Code: # EMD-SK-GAL

Test samples kit Gun Disassembled

Reference Samples for accurate verification of the Security Level. Includes guided procedures and certificate of calibration.

Part Code: # EMD-SK-GDML

Transport Case

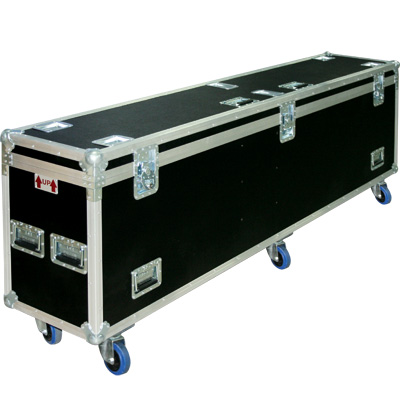

Aluminium Metal Frame; High Resistance Composite walls; Antishock construction; Filling in highly impact-absorbent polyethylene; Lockable handles; Integrated wheels; Weight: 68 kg

Part Code: Standard # 57290
Navy # 64296

Upper tie-down points

Part Code: # 64886

Wheel Kit - Long Range

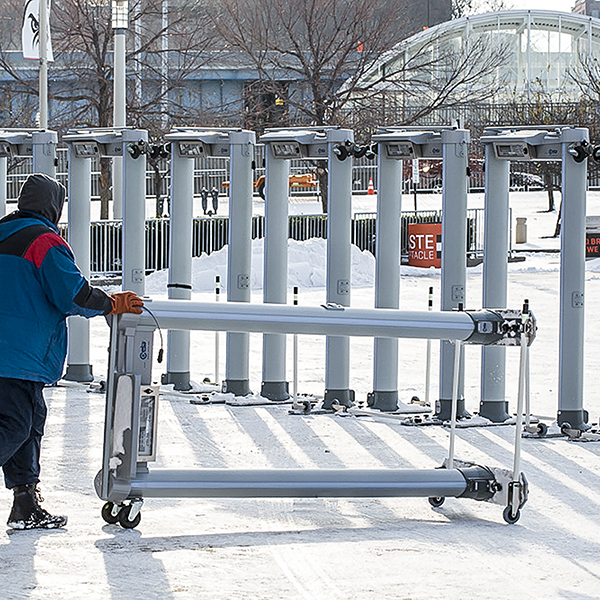

The Transport and Stabilizing Device allows the Elliptic and Panel WTMDs to be easily transported with no need for the operator to disassemble the archway. In addition, the it provides archway stability.

The Device is applicable to Elliptic and Panel-Shape Walk-Through Metal Detectors.

The system has been found compliant for safety with applicable parts (a,b) of par. 7.4 Stability of the Standard EN61010-1:2010 (IEC61010-1:2010). However, it is always recommended that the archway is secured to the fl oor by means of anchors.

Part Code: # 70569
