PD140N
New Generation Compact Hand Held Metal Detection Set
PD140N
New Generation Compact Hand Held Metal Detection Set
- NIJ Standard - 0602.02 Compliant
- Compact, Elegant, Robust and Ergonomic
- Uniform Detection of Magnetic and non-Magnetic Targets
- Full Digital Design: Consistent Performance and Calibration-Free Operations
- Detection of radioactive substances and materials (option)
- Extended Continuous Operation Time
- Advanced Configuration Capability
- Indoor and Outdoor Operations
Brochure
Manuals

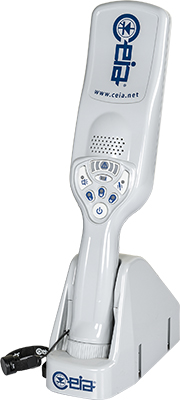

The PD140N hand-held metal detector features a compact and comfortable design that is NIJ standard 0602.02 compliant and provides uniform detection of magnetic and non-magnetic threat items while offering high immunity to external disturbance from electromagnetic and mechanical sources. It utilizes embedded, long life rechargeable batteries with no need for battery removal, as well as an exclusive embedded fast and reliable battery charger. The PD140N can be used for indoor and outdoor operations.
Fully Programmable Signalling: Proportional/Fixed, High Loudness Acoustic Alarm; Proportional/Fixed, High Brightness Optical Alarm; Vibration Alarm for Discrete Screening
Advantages & Benefits
- Programmable Sensitivity
- Extended Continuous Operation Time
- Automatic Low Power Mode during Screening Pauses
- Embedded Long Life Rechargeable Batteries are renewable energy and wipe out Operation Cost of Alkaline Batteries
- Embedded Fast and Reliable Battery Charger: no need of batteries removal
- Dedicated Holder acts as Minimum Space Table Stand and Mains connection for Battery Charge
- Operator Functions can be standard or customized by the user through PC GUI and USB connection
Compact elegant, robust and ergonomic
The PD140N features a special ergonomic design consisting of an offset hand grip which ensures that the operator’s hand does not interfere with the sensitive detection area. This means fewer scans per person and therefore shorter inspection times per person.
Special care has gone into the mechanical design of the detector. Absence of sharp edges or corners allows the detector to be passed smoothly over the inspected area without getting caught in buttons, buckles, folds or other parts of clothing.
NIJ Standard 0602.02 compliant
The technical features of the detector comply with the NIJ standard 0602.02 and the new NIJ draft standard 0602.03. The PD140N has uniform sensitivity to magnetic and non-magnetic targets including those made of stainless steel. At the same time the detector offers excellent body-effect compensation and has high immunity to external disturbance from electromagnetic and mechanical sources.
Full digital design
The PD140N is fully digital. Electronic functions include an inspection field transmitter- receiver based on Digital Signal Processing (DSP) technology, a digital operator interface and external communications over the incorporated USB port. This design combined with a special printed antenna ensures top reliability and very high repeatability.
Advanced control panel
The control panel with switches and warning lights is made from high-thickness silicon guaranteeing high degree of protection to make the PD140N suitable for indoor and outdoor use.
Extended continuous operation time
The PD140N metal detector is powered by two AA-size NiMH batteries with a battery life of over 100 hours. A Low Power Mode is automatically activated during pauses, extending the battery life up to 200 hours. An internal circuit optimizes battery recharging which takes less than five hours.
Latest plastic materials technology
The metal detector casing is made from next-generation technical polymers. These plastics offer high chemical resistance and mechanical strength ensuring a long detector life even in heavy duty conditions.
Advanced configuration capability
The digital design of the new metal detector also enables the maximum flexibility in selecting the functions available to the user and how detection alarms are signalled. Users can keep the factory settings or connect the detector over its USB to a PC and then personalize the settings with a dedicated graphic interface (HHMD configuration tool required).
Download Specifications
Power Supply |
- 2x AA size NiMH, rechargeable batteries
|
Fully customizable control panel |
- Optical, acoustic and vibratory alarm modes
- 3-level sensitivity selection buttons
|
Detection and operational functions |
- Customizable via HHMD Configuration tool
|
Battery |
- Battery life: 100 + hours (AA NiMH batteries 2500 mAh); up to 200 hours with automatic sleep mode
- Low battery indicator
- Built-in fast battery charger in combination with the HHDS Docking station
|
Operating temperature |
|
Storage temperature |
|
Relative humidity |
- 0 to 98% (without condensation)
|
Dimensions |
- PD140N: 14.2” x 3.2” x 1.6”
- HHDS Docking station: 6.9” x 4.5” x 3.4”
- Carry Bag: 17” x 13.4” x 4.1”
|
Weight |
- PD140N (with battery): 0.86 lbs
- HHDS Docking station for PD140N (with power adapter): 1.6 lbs
- Carry Bag: 2.9 lbs
|
Color |
- PD140N: light grey RAL 7040
- Carry Bag: Green RAL 7013
|
Manufactured |
- In grey shock-resistant technical polymers
|
Compliance |
- NIJ 0602.02 and NIJ 0602.03 (draft) Standards for metal detection
- International Standards currently applicable for safety, EMC and applicable CE regulations
|
![Belt Holster CEIA Metal Detectors Belt Holster CEIA Metal Detectors](images/parts/a037.jpg?random=e2aa2f03b661460595722eaf0662b0e3)

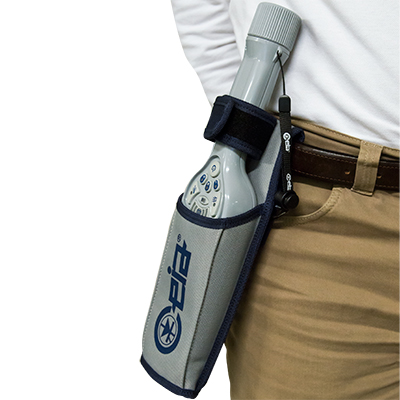

Belt Holster
Part Code: # 64614
![Carry Bag CEIA Metal Detectors Carry Bag CEIA Metal Detectors](images/parts/a027.jpg?random=e2aa2f03b661460595722eaf0662b0e3)

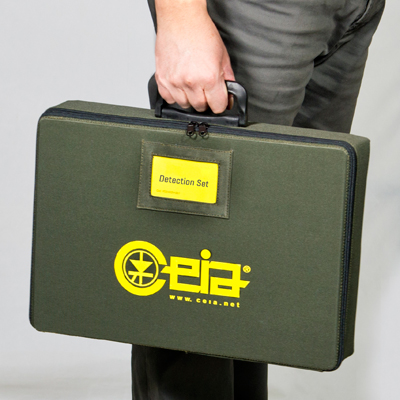

Carry Bag
Part Code: # 64081 (PD240C # 64082)
![Cigarette lighter cable for battery charger CEIA Metal Detectors Cigarette lighter cable for battery charger CEIA Metal Detectors](images/parts/a038.jpg?random=e2aa2f03b661460595722eaf0662b0e3)

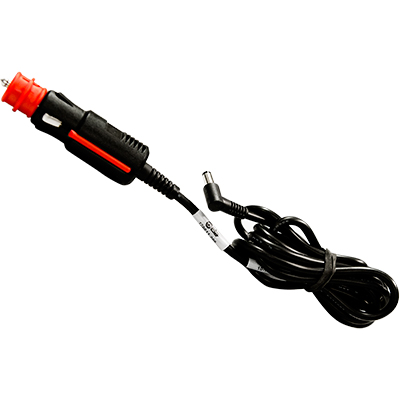

Cigarette lighter cable for battery charger
Part Code: # 64436
![HHDS-5 CEIA Metal Detectors HHDS-5 CEIA Metal Detectors](images/parts/a041.jpg?random=e2aa2f03b661460595722eaf0662b0e3)

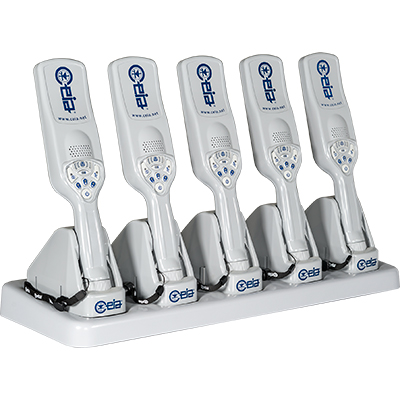

HHDS-5
Features
- Simultaneous charge of multiple HHMDs
- Single mains socket installation
- Minimum space requirement
- Monolithic, high mechanical stability
Applications
- Public Events
- Stadiums and Sport Arenas
- Conventions
- Multiple lane screening
Part Code: # HHDS-5
![HHMD CEIA Metal Detectors HHMD CEIA Metal Detectors](images/parts/a028.jpg?random=e2aa2f03b661460595722eaf0662b0e3)

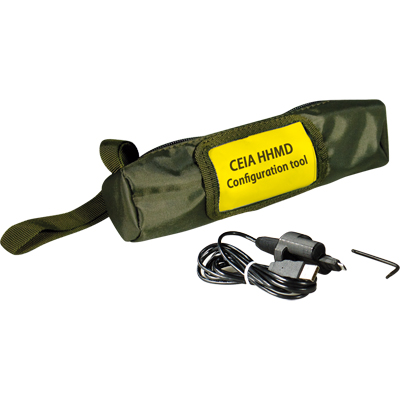

HHMD
Allows the connection of the Metal Detector to PC, via USB port.
Includes special USB adapter with cable, GUI application software, tool for battery cap removal.
Part Code: # 63537
![NIJ 0602.02 CEIA Metal Detectors NIJ 0602.02 CEIA Metal Detectors](images/parts/a029.jpg?random=e2aa2f03b661460595722eaf0662b0e3)

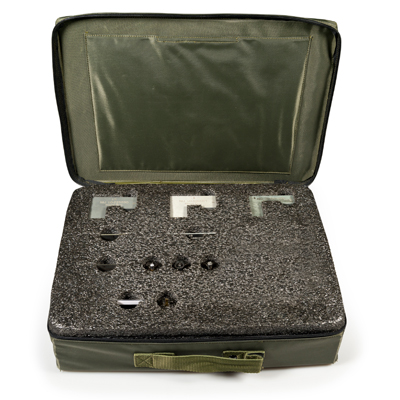

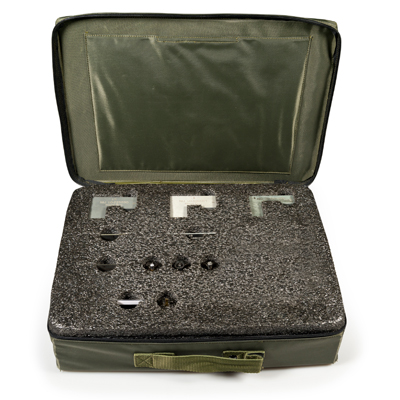

NIJ 0602.02
Includes 11 test objects for LO, MO, SO, VSO security levels.
Test pieces are manufactured according to NIJ 0602.02 specifications and electromagnetically certified.
