SECURITY Detection
PD140E
Compact Hand Held Metal Detector
Company Presentation
ISO 9001 Certification
PD140E
Compact Hand Held Metal Detector
- NIJ Standard - 0602.02 Compliant
- Compact, Elegant, Robust and Ergonomic
- Uniform Detection of Magnetic and non-Magnetic Targets
- Full Digital Design: Consistent Performance and Calibration-Free Operations
- Extended Continuous Operation Time
- Programmable Sensitivity
- Indoor and Outdoor Operations
Brochure
Manuals

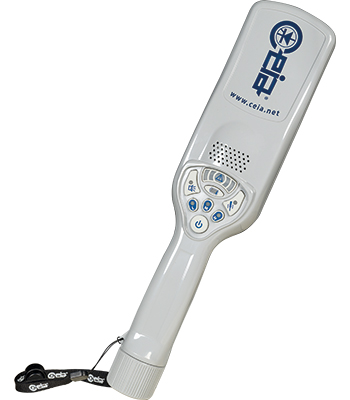

The PD140E is a compact and lightweight hand-held metal detector that is NIJ standard 0602.02 compliant and features CEIA's full digital design for consistent performance, high reliability and calibration-free operations. Ideal for a variety of security checkpoint locations and characterized by its ease of use and extended continuous operation time. The PD140E can be used for indoor and outdoor operations, and it utilizes 2x AA size alkaline or NiMH rechargeable batteries.
Fully Programmable Signaling: Proportional Acoustic Alarm; Proportional Optical Alarm; Vibration Alarm for Discrete Screening.
Compact, elegant, robust and ergonomic
The PD140E features a special ergonomic design consisting of an offset hand grip which ensures that the operator’s hand does not interfere with the sensitive detection area. This means fewer scans per person and therefore shorter inspection times per person. Special care has gone into the mechanical design of the detector. Absence of sharp edges or corners allows the detector to be passed smoothly over the inspected area without getting caught in buttons, buckles, folds or other parts of clothing.
NIJ Standard 0602.02 compliant
The technical features of the detector comply with the NIJ standard 0602.02 and the new NIJ draft standard 0602.03. The PD140E has uniform sensitivity to magnetic and non-magnetic targets including those made of stainless steel.
At the same time the detector offers excellent body-effect compensation and has high immunity to external disturbance from electromagnetic and mechanical sources.
Full digital design
The PD140E is fully digital. Electronic functions include an inspection field transmitter-receiver based on Digital Signal Processing (DSP) technology. This design, combined with a special printed antenna, ensures consistent performance, very high reliability and calibration-free operations.
Latest plastic materials technology
The metal detector casing is made from next-generation technical polymers. These plastics offer high chemical resistance and mechanical strength ensuring a long detector life even in heavy duty conditions.
Download Specifications
Power supply |
- 2x AA size alkaline or NiMH rechargeable batteries
|
Fully customizable control panel |
- Optical, acoustic and vibration alarm modes
- 3-level sensitivity selection buttons
|
Battery |
- Battery life: 100 + hours continuous service (AA alkaline batteries)
- Low battery indicator
|
Operating temperature |
|
Storage temperature |
|
Relative humidity |
- 0 to 98% (without condensation)
|
Dimensions |
|
Weight |
|
Color |
|
Manufactured |
- Manufactured in grey shock-resistant technical polymers
|
Compliance |
- Conforms to the NIJ 0602.02 Standard and the NIJ 0602.03 Draft for metal detection
- Conforms to the international standards currently applicable for safety, EMC and to the applicable CE regulations
|
Package dimensions |
- 375 mm x 90 mm x 58 mm (LxDxH)
|
Package weight |
|

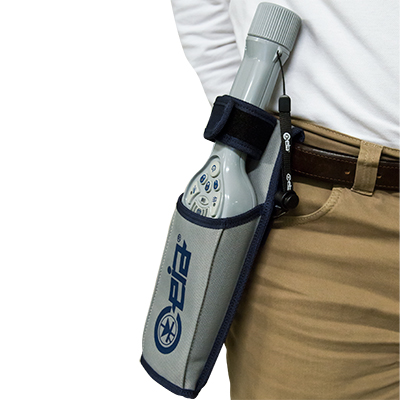

Belt Holster
Part Code: # 64614

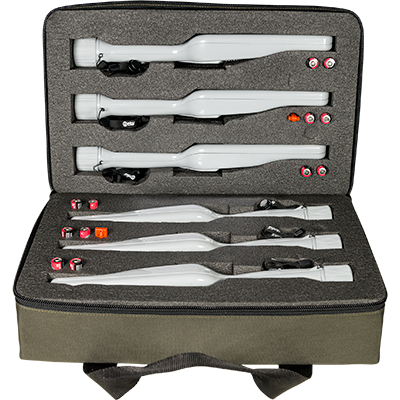

HHMD-6
Features
- Fast deployment of six HHMDs set
- Minimum space requirement for multiple HHMDs transport
- Lightweight and robust construction
- Alkaline batteries and test pieces included
- Size compliant with requirement for transport in air carries cabins
- Weather-Resistant
Applications
- Special Forces
- Police, Army
- High mobility applications
Set general features
- External dimensions (mm) 425 x 190 x 300 (WxDxH)
- Weight (including Detectors) 3,8 kg
NIJ 0602.02
Includes 11 test objects for LO, MO, SO, VSO security levels.
Test pieces are manufactured according to NIJ 0602.02 specifications and electromagnetically certified.
Brochure
Manuals
Certificates
