High-Performance Ferromagnetic Weapons Detector




Company Presentation
ISO 9001 Certification
  • High sensitivity to ferromagnetic metals
  • Detection over entire height of person
  • Advanced technology compact design
  • Extremely durable and reliable
  • Ideal for covert access control: very small footprint; easily concealed inside ornamental structures
  • High and uniform sensitivity
  • Accurate localization with multi-zone acoustic and optical alarm signalling
  • Extremely durable design including stainless steel and high impact reinforced plastics
  • Up to 70,000 events can be recorded locally (FIFO Logger) with traceability of the alarms, programming modifications and diagnostics
  • Programming of operational parameters and downloading of data logger by smartphone or portable PC
  • Powered through PoE Ethernet or with 24Vdc external adapter
  • Large number of CEIA MSD ferromagnetic detectors installed

Brochure
Click To View English - US Brochure
Manuals
MSDi

MSDi has been specifically designed for easy integration of Ferromagnetic Weapons Detection in Covert Access Control. The MSDi's very small footprint allows Ferromagnetic Detection Technology to be concealed inside ornamental structures and combines the features of MSD™ and MSD EVO™ in a single and compact device.

MSDi - detail

Ferromagnetic Detector Management App

Controls and indicators

  • Programming of operational parameters and downloading of data logger by smartphone or portable PC
  • SECURITY: Password protected programming at User and Supervisor level
  • MULTI-COLOR STATUS AND ALARM WARNING LIGHT
    • GREEN LIGHT: Normal operation, no alarm
    • YELLOW LIGHT: Detection of ferromagnetic object below alarm threshold
    • RED LIGHT: Detection of ferromagnetic object above alarm threshold: Full height alarm indication; Indication proportional to signal intensity; Alarm indication with 5 different localization zones; Full height alarm indication, followed by zonal signalling
    • BLINKING RED LIGHT: diagnostics alarm
    • BLUE LIGHT: Connecting BT device in progress
  • ALARM SOUNDER
    • Alarm indication for target over the alarm threshold: Fixed tone; Tone proportional to signal intensity; Single pulse for pinpointing target
    • Alarm tone can be selected, continuous and intermittent
    • Self-diagnostics signal: intermittent tome
  • BT HEADSET (ACCESSORY): Copies all acoustic indications, with the addition of checking BT connection

Power supply

  • Via Ethernet port, PoE Class 0 compliant to IEEE 802.3af/IEEE 802.3at Type 1
  • Via connecting cable to external 24Vdc supply
  • Via external AC/DC power adapter [ACCESSORY]

Input/output

  • LAN port. Ethernet port, PoE Class 0 compliant to IEEE 802.3af/IEEE 802.3at Type 1
  • IN/OUT port. General purpose connector. Type: 8-pole M12 male. It supports the following connections:
    • Power supply input. Voltage: 24Vdc ±10%, 0.25A max
    • RS-232 serial communication lines
    • Relay output, activated in case of alarm or diagnosis alert. Selectable in normally open or normally closed operation. Rating: 0.4A max, 30Vdc.
    • Inhibition input. Galvanically isolated 2-pole connection. Rating: + 5 ÷ 12 Vdc.

Environmental conditions

  • Working temperature: -10°C to +65°C
  • Storage temperature: -37°C to +70°C
  • Relative humidity: 0 to 95%, non-condensing

Detector weight

  • 3,5 Kg

Dimensions

  • 90 mm x 73 mm x 1820 mm (WxDxH)

Shipping information

  • Dimensions (WxDxH): 200 mm x 160 mm x 2170 mm
  • Weight 10 Kg

Detector degree of protection

  • IP55

Available accessories

  • BT audio function activation, headset and charger - code 88919

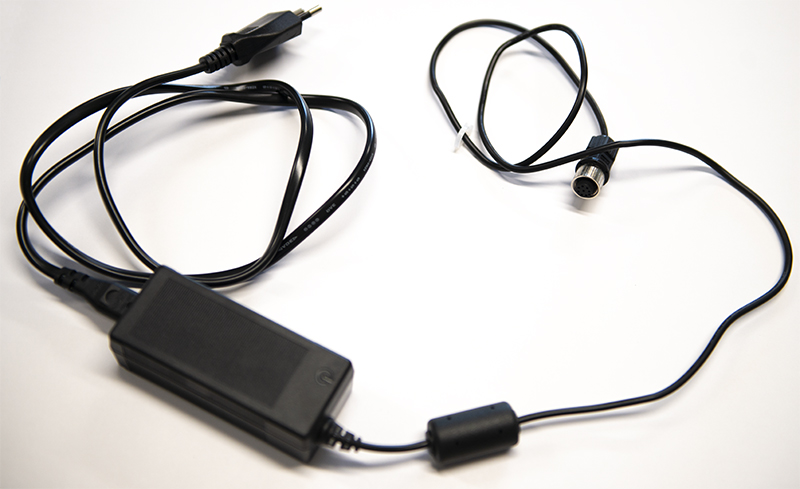

  • External AC/DC adapter - code 91553
  • App CEIA FMD: the application allows monitoring of the device, adjustment of the settings and downloading of data logger. Available on Google Play Store. REQUIREMENTS: Android 7.0 or later, BT interface available

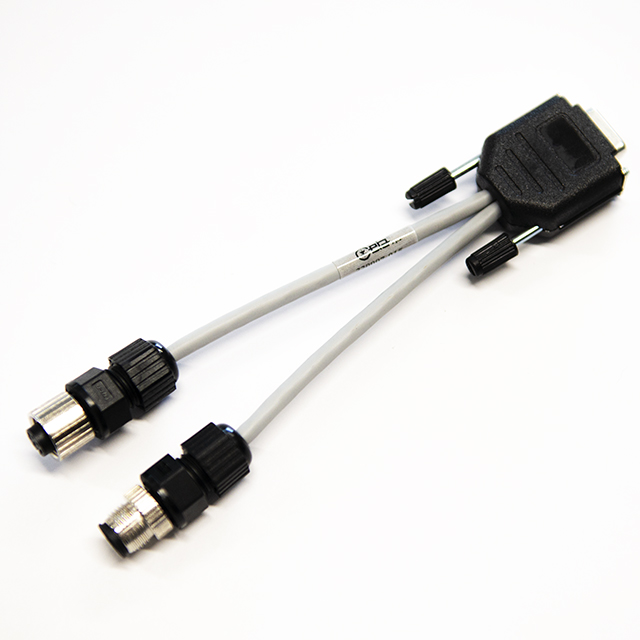

  • Service cable for RS-232 connection - code 91556

Certification and compliance

  • Safe for use for pacemakers and other medical implants
  • Compliant with the applicable electromagnetic Standards on Human Exposure and pacemaker safety
  • Compliant with and certified to the applicable International Standards for electrical safety and EMC
