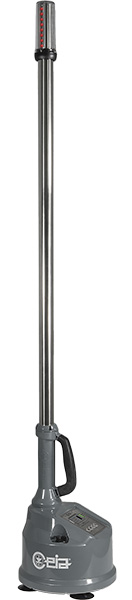

The illegal use of cell phones is a growing and dangerous problem in correctional institutions worldwide. These devices are a significant threat to prison security and circumvent the monitoring processes in prisons, while allowing inmates to commit new crimes both inside and outside the facility. The MSD^™ was specifically designed to detect all cell phones and ferrous contraband concealed on the person or in body cavities (including key fob cell phones, smart phones, radio transceivers, etc.) quickly and easily. The one-piece design allows the MSD^™ to be easily transported and operational in 10 seconds.

The one-piece design allows the CEIA MSD to be easily transported and operational in 10 seconds

Benefits

Detection of magnets and ferromagnetic metals
Full-height, 360° detection (horizontal & vertical)
5 individual zones for pinpointing locations of contraband on the body
Covert operation through use of BT wireless headset
Fully weather proof for outdoor use
24 hours typical / 26 hours max. of continuous battery operation with 4.5 hours charge
One-piece and lightweight design (total weight only 21 lbs with batteries included) easily transportable by one person
Unmatched detection in all environments without adjustment
Extremely durable design using stainless steel and high impact reinforced plastics
Anti-tip suction cups for securing to smooth floor surfaces (included)
Non-emitting device: safe for use for pace-makers and other medical implants
Throughput: 60+ people per minute (based on uninterrupted flow, separately alarms resolution)

Carrying case for personal transport and storage

Heavy-duty lightweight carry system
Custom fit to the MSD^™ shape
Dedicated pocket for accessories
Space–saving
Included parts:
- MSD^™ Ferromagnetic Detector unit
- Test sample
- External AC/DC battery charger adapter
- Carrying case

MSD EVO^™™ Option

Even though the MSD^™ is typically used as a stand-alone single pole, the new MSD^™ Pass-through configuration with EVO option defines now the possibility to operate on a transit width up to 6 ft with constant detection sensitivity from pole to pole. Moreover, this new uniform solution allows the reliable screening of in-mates transiting through a corridor, the surveillance of large transit openings and an extremely accurate investigation of mattresses and other objects that could hide contraband.

Download Specifications

Controls and indicators

ON/OFF push-button
4-key keypad, for programming and status readout
Programming of operational parameters and downloading of data logger by smartphone or portable PC
SECURITY
- Password protected programming at User and Supervisor level
MULTI-COLOR STATUS AND ALARM WARNING LIGHT
- GREEN LIGHT
  - Normal operation, no alarm
- YELLOW LIGHT
  - Detection of ferromagnetic object below alarm threshold
- RED LIGHT
  - Detection of ferromagnetic object above alarm threshold:
    - Full height alarm indication
    - Indication proportional to signal intensity
    - Alarm indication with 5 different localization zones
    - Full height alarm indication, followed by zonal signalling
  - Blinking light: diagnostics alarm
- BLUE LIGHT
  - Connecting BT wireless device in progress
ALARM SOUNDER
- Alarm indication for target over the alarm threshold:
  - Fixed tone
  - Tone proportional to signal intensity
  - Single pulse for pinpointing target
- Alarm tone can be selected, continuous and intermittent
- Self-diagnostics signal: intermittent tome
BT HEADSET (ACCESSORY)
- Copies all acoustic indications, with the addition of checking BT connection

Power supply

AC/DC external power adapter: 100 … 240 V~ , 47…63Hz, 40W
Embedded rechargeable battery
- 16h typical / 17h max. of continuous operation with 3 h battery charge
- 24h typical / 26h max. of continuous operation with 4.5 h battery charge

Detector environmental conditions

Working temperature: 14 to 149°F
Storage temperature: -35 to 158°F
Relative humidity: 0 to 95%, non-condensing

Weight

MSD^™: 21 lbs
AC/DC adapter: 1.6 lbs
BT wireless communication kit: 0.5 lbs (includes battery charger)
Carrying case: 1.5 lbs
Installation kit: 0.6 lbs

MSD^™ dimensions

Height: 75”; Width: 13”

Shipping information

Dimensions (WxDxH) 16” x 79” x 19”
Weight 53 lbs

Degree of protection

Fully weather proof for outdoor use (IP65)

Available accessories

EVO function activation; code 88918

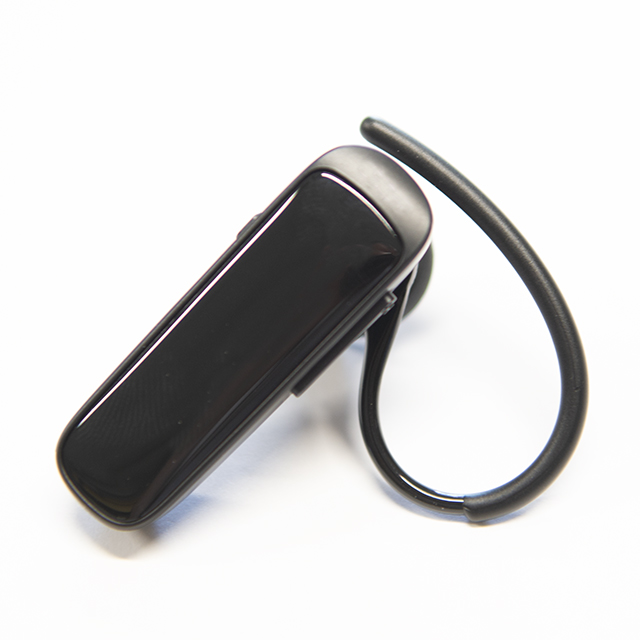

BT wireless audio function activation. Includes a headset with AC/DC charger; code 88919

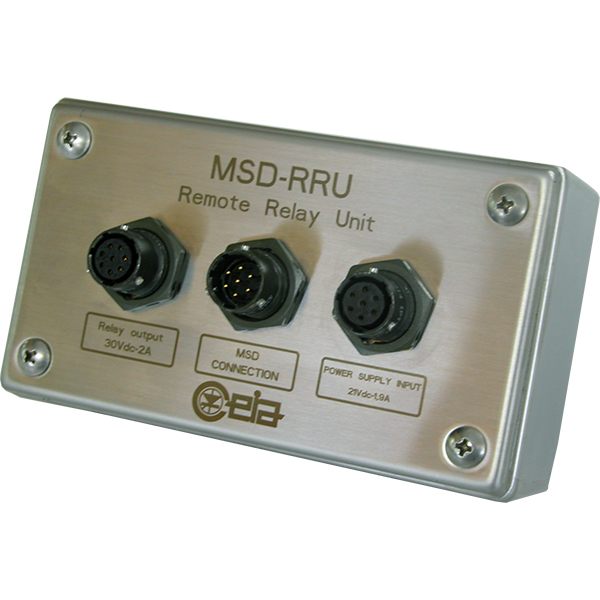

MSD^™-RRU Remote Relay Unit; code MSD^™-RRU

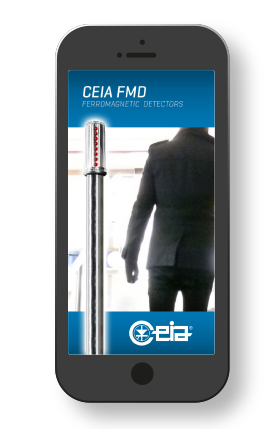

App CEIA FMD: the application allows monitoring of the device, adjustment of the settings and downloading of data logger. Available on Google Play Store. REQUIREMENTS: Android 7.0 or later, BT interface available

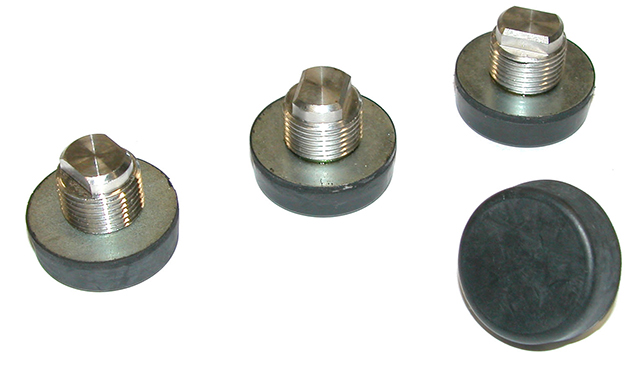

Solid rubber feet; code 88917

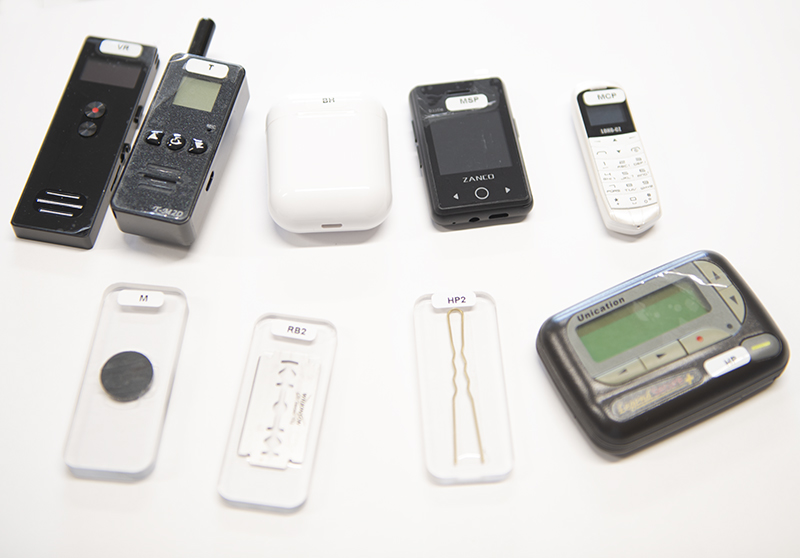

MSD^™ Demo Kit - Kit of demonstration objects, consisting of: BT wireless headset • Hair pins • Hospital pager • Magnet • Medical scissors • Micro cell phone • Micro smartphone • Needle • Razor blades • Transceiver • Voice recorder; code 89052

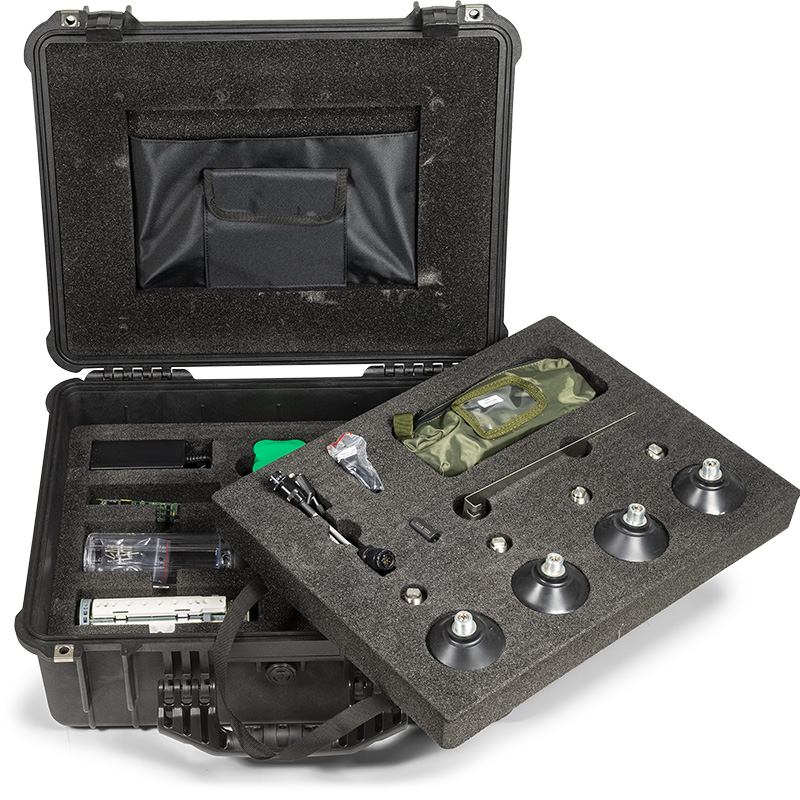

MSD^™ Maintenance Kit: Set of main spare parts and necessary tools; code 89051

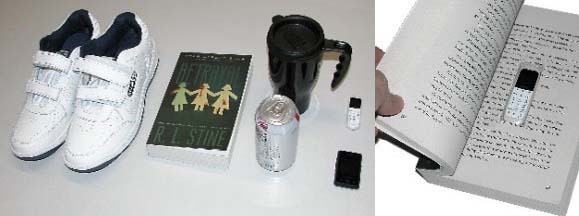

MSD^™ Training Kit: Set of innocuous items tampered creating a concealed space for hiding small size threat objects; code 89054
MSD EVO^™ Connecting
- Cable Length 9 ft; code 95376
- Length custom, up to 82 ft code 95494
Standing mat: self-adhesive mat with indication of position and rotation; code 94590

Certification and compliance

Safe for use for pace-makers and other medical implants
Compliant and certified to the applicable electromagnetic Standards on Human Exposure and pacemaker safety
Compliant with and certified to the applicable International Standards for electrical safety and EMC
