SECURITY Detection
EMIS®-MAIL
Mail scanner for the detection of letter bombs and IEDs in small parcels
Certified by Governmental Laboratories
Company Presentation
ISO 9001 Certification

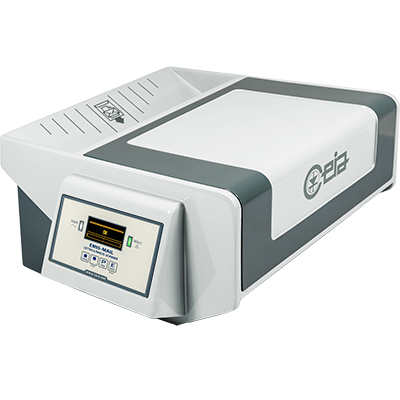

EMIS®-MAIL
Mail scanner for the detection of letter bombs and IEDs in small parcels
- Automatic inspection of parcels and letters up to 18” in width and 3” thickness
- Detection of detonators, batteries, trigger circuits and other metallic components of letter bombs
- No alarm on metal staples, paper-clips and metal binding spirals
- Ergonomic, compact design
- Confirmation of signal (OK/ALARM) for each package inspected
- Operates on mains power supply and with NiMH rechargeable batteries (opt.)
- No calibration or periodic maintenance required
- Integrated battery charger
- Optional embedded radioactive material detector
Brochure
Manuals
Mail scanner for the detection of letter bombs and IEDs in small parcels
Easy installation and use
The EMIS®-MAIL is designed to detect a wide variety of metal threat items including detonators, batteries, trigger circuits and other metal components of parcel bombs without false alarms for non-threat items such as metal staples, paper clips and metal binding spirals.
The EMIS®-MAIL is very easy to use and provides a fast and automatic alarm/no alarm signal confirmation per each inspected package. Its compact, ergonomic design along with the electric and built-in NiMH rechargeable battery power supply allows for independent operation in a variety of locations. An optional embedded radioactive detector is also available for radioactive material threat detection.
The EMIS®-MAIL is uniquely qualified to operate in a prison or correctional facility environment with specific settings available for prison parcel inspection. Along with meeting the strictest safety and security standards, EMIS®-MAIL is also compliant with the NIJ-0602.02 Department of Justice Detection requirement standard.
Key features of the CEIA EMIS®-MAIL include:- Ease of Installation and Setup
- Ease and Speed of System Use with Limited Screener Training Required
- Automatic Inspection of Parcels and Letters up to 18” Wide and 3” Thick
- No Calibration or Periodic Maintenance Required
- Independent Operation with Mains Power Supply or Built-in NiMH Rechargeable Batteries
Download Specifications
Key features
- High inspection speed
- No alarm on metal staples, paper-clips and metal binding spirals
- Digital programming with high-resolution OLED graphic display
- Visual and audible alarm signalling
- Built-in Self-Test System
- Permanent memory storage of operating parameters without back-up batteries
- Independent operation, with mains power supply or batteries (opt.)
- Specific Settings available for Prison parcels inspection (Dept. of Justice requirements)
- Compliant with NIJ-0602.02 Dept. of Justice Detection requirements
Structure
- Transit opening: 18” x 3”
- Degree of protection: IP40
Dimensions
- 18.1” x 22” x 10” (WxDxH)
Weight
Power supply
- Voltage: 100-277 V~±10%, 47-63Hz with external AC/DC adapter
- Current: 1.3 A max
- Battery operation (optional)
- 6 x 1.2V NiMH size D
- Battery life: 12 hours
- Battery-charger incorporated: recharging time 6 h
Programming
- Type
- Local: via integrated keypad
- Remote: via Bluetooth, RS232
- Data Logger Memory capacity: 10.000 events
Signalling
- Audible
- Visual

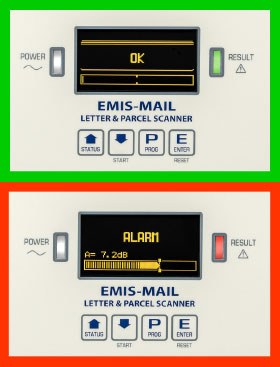

- High-contrast OLED graphic display with bar-graph indication/zone location (pinpointing)
- LED indicators on the control panel:
- White: Power supply
- Green: OK
- Red: Alarm,Autodiagnosis
- Blue: Alarm, detection of radioactive substances
Security / Safety
- Access to programming protected by password
- Galvanic isolation: operates on Low DC voltage
Communication
- Incorporated Bluetooth (FCC ID: QOQWT12 - IC:5123A-BGTWT12A) interface, RS232
Environmental data
- Temperature
- Operating: 14°F to 122°F
- Storage: -13°F to 140°F
- Relative humidity: 5 to 90 %, without condensation
Conformity (Test Reports available upon request)
- SAFETY
- EN61010-1
- ACGIH, 2014 Threshold Limit Value (TLV)
- IEEE C95.1-2005
- EC-Rec. 1999/519/EC
- EN 50364:2010
- EMC
- RED
- EN300330: Short Range Devices (SRD)
NATO stock number
Gamma radiation detection
- Optional upgrade for the detection of radioactive sources is available on demand. The gamma alarm indication includes the activity level (low/medium/high) and the CPS value (counts per second). Analysis time: 5 seconds
The EMIS®-Mail devices are designed to be used in:- Government buildings
- Diplomatic Missions
- Public Authorities
- Critical Infrastructures
- Private Corporations Mailrooms
For the security screening of:
Radiation detection module
Optional upgrade for the detection of radioactive sources is available on demand. The gamma alarm indication includes the activity level (low/medium/high) and the CPS value (counts per second). Analysis time: 5 seconds.
Part Code: 67197

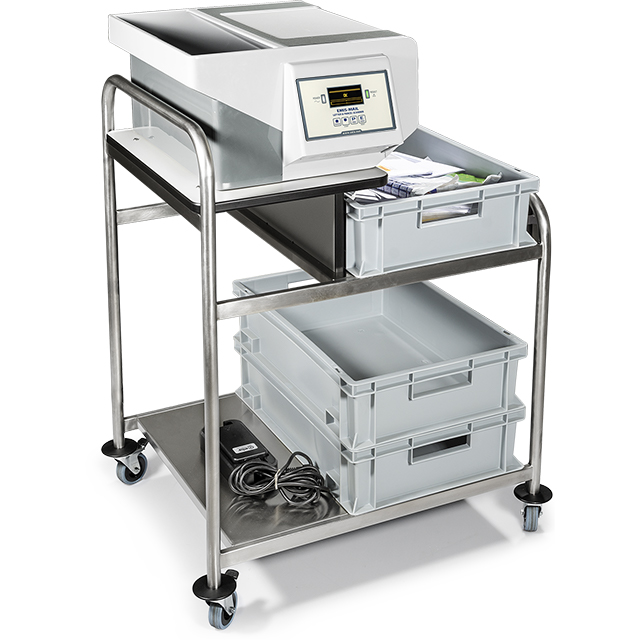

EMIS-MAIL Mobile Station
Part Code: # 76332

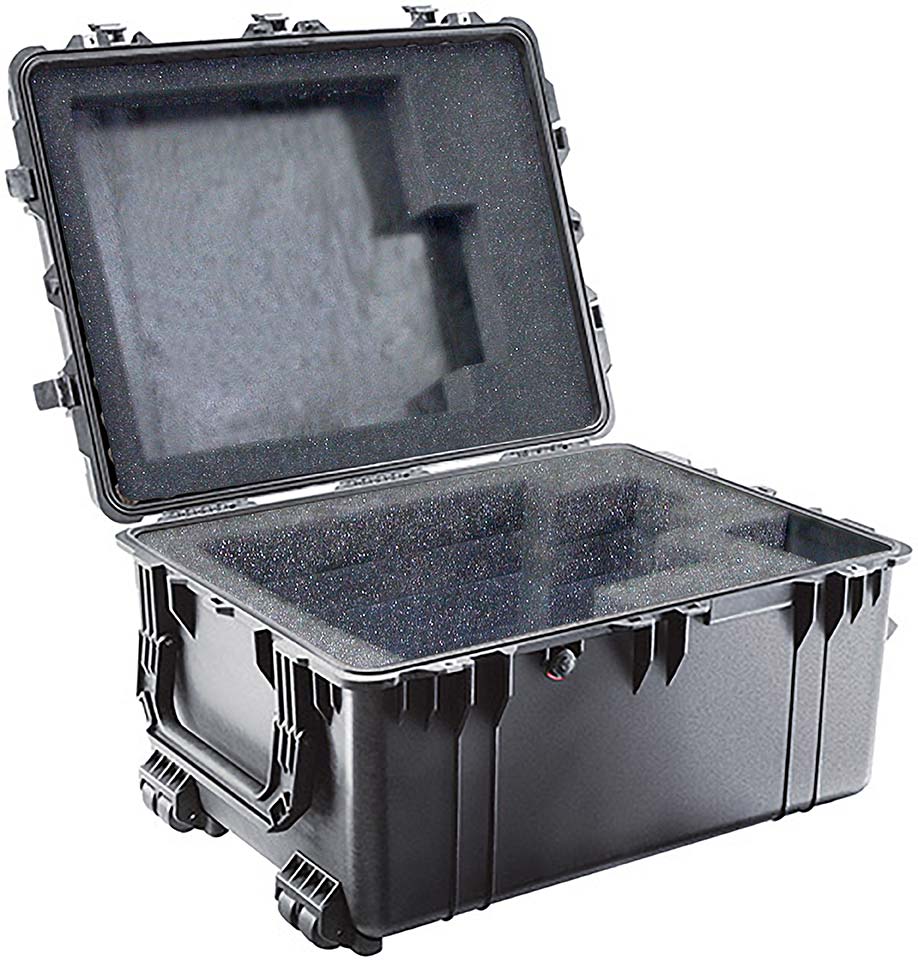

Transport Case
Part Code: # 67226
