Get Productive, Get Connected, Get CEIA THS Production 4.0




Présentation de la société

Click To View GB Brochure
Click To View I Brochure
Click To View E Brochure
Click To View d Brochure
Certification CEIA ISO 9001
  • Connects and acquires data from multiple Metal Detectors via wired or wireless LAN
  • Enables database management and backup of Metal Detector events
  • Report data exportable in HTML, CSV and PDF formats
  • Provides user authentication and manages electronic signatures and records
  • Allows data integrity and operator auditing
  • FDA requirements compliant, Title 21 of the Code of Federal Regulations (CFR)
  • Batch management for defective product traceability
  • High performance 64-bit database that handles more than 500 millions events
  • Early metal explosion identification

Dépliant
Click To View English Brochure
Click To View English - US Brochure
Manuels
THS Production 4.0

The THS Production 4.0 software provides acquisition and report capability for THS 21 Metal Detection Systems

THS Production 4.0 - detail

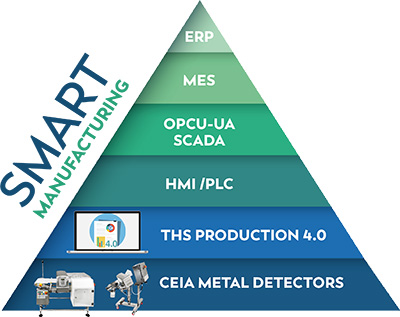

Smart Manufacturing

  1. Connect your CEIA Metal Detector to your network.
  2. Install CEIA THS Production 4.0 software in a centralized server in your network.
  3. Configure the software module (ERP /OPC UA) according to your infrastracture and production system.
  4. Start to manage CEIA Metal Detector data from your office and improve your production.


CEIA-ERP Interface module is connected to your database and sends Metal Detector data in real-time. These data automatically flow to every area that may need or use that information: employee and software can access the specific information they need quickly. The module enables a two-way flow communication with the Metal Detector: your production system can now write parameters in the machine.

CEIA OPC UA Server module makes available Metal Detector data in real-time to all OPC client connected. The OPC client can be inside your PLC, your SCADA system or a stand-alone software in your infrastructure. To maintain security in data exchange, the communication can be encrypted. The module enables a two-way flow communication with the Metal Detector: your OPC client can now write parameters in the machine.

Data Inspector Tool shows the signal and all events coming from the Metal Detector in a web browser. The signal analysis can be in real-time or with historical data: this allows to identify electrical noise, mechanical noise or bad contamination coming from the environment. Through the signal status, you can plan a manual inspection and act before stopping the production. No production stops, less money lost!
