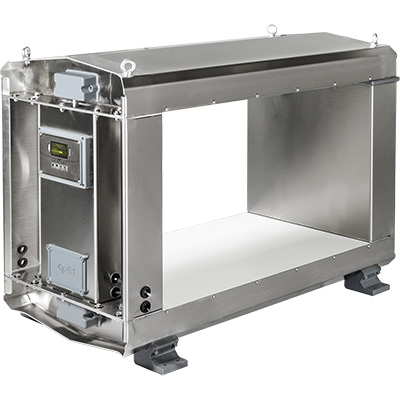

SDT
Advanced digital metal detector for recycling industry
- Ultra high Sensitivity to all magnetic and non-magnetic metals, including stainless steel
- Openable AISI 316 stainless steel construction system
- Compact and robust construction
- High immunity to environmental interference
- Wide Detection Speed range, from 1 up to 600 m/min
- Easy installation and setting on existing conveyor without belt opening
- Internal self-diagnosis system
- Easy to read, high-contrast graphic display
Brochures
Manuals
The CEIA SDT digital Metal Detector is suitable for intercepting magnetic and non-magnetic metal fragments of small to medium dimensions in recycling industrial, textile, chemical, mining, foodstuffs and other products, both for quality control and machinery protection.
Programming features
- Fully digital programming
- Internal data logging with data and timestamp for Quality Control
- Password protected with separate user and engineer level
- BT Communication for setting and maintenance through external PC
- Autolearn function for automatic setting of the maximum sensitivity in dry and wet conditions
- Built-in function for automatic measurement of the external interferences
Download Specifications
General features
- Adjustable sensitivity with wide dynamic range (0-299)
- Interception speed programmable according to its application
- Digital programming with OLED graphic display
- Internal data logging with data and timestamp for Quality Control
- Autolearn function for automatic setting of the maximum sensitivity in dry and wet conditions
- Built-in self-diagnosis system
- Permanent settings memory without battery back-up
Structures
- Material
- Electronic unit: AISI 316 Stainless steel
- Probe: AISI 316 Stainless steel
- Protection degree IP65
Power supply
- Voltage: 100-240 V~ single phase – 50/60 Hz
- Current: 0,64 A max
Programming
- Type
- Local: Through built-in keyboard
- Remote: BT Wireless
- Data capabilities, Internal memory
Signalling
Visual- Graphic display with bar-graph indication
- Bright indicators on Control Panel
- RED: Alarm or fault
- GREEN: Line present
Security and safety
- Programming access: 2 access levels, Operator and Supervisor
- Galvanic isolation of line voltage
- Low operating voltage: No danger for the operator
- In accordance with international standards of safety and radio interference
Control inputs
- Connection for Alarm reset or Encoder input
- BT Wireless interface Built-in
Outputs
- 1 programmable relay: Alarm relay
Environmental data
- Temperature
- Working: 0 – +50 °C
- Environmental: -10 – +55 °C
- Storage: -25 ÷ +55 °C
- Relative humidity: 5 – 90 %, without condensation
