PREVENTIVE DETECTION OF FERROMAGNETIC AND MAGNETIZED OBJECTS which can cause a “projectile effect” in the MRI room
HIGH AND UNIFORM SENSITIVITY TO FERROMAGNETIC ITEMS
Accurate localization with MULTI-ZONE ACOUSTIC AND OPTICAL ALARM SIGNALING
EXTREMELY DURABLE DESIGN including stainless steel and high impact reinforced plastics
IT CAN OPERATE IN ANY LOCATION in Zone I, II or III
UP TO 70,000 EVENTS CAN BE RECORDED locally (FIFO LOGGER) with traceability of the alarms, programming modifications and diagnostics
PROGRAMMING of operational parameters and DOWNLOADING OF DATA LOGGER by smartphone or portable PC
Powered through PoE Ethernet or with 24Vdc external adapter

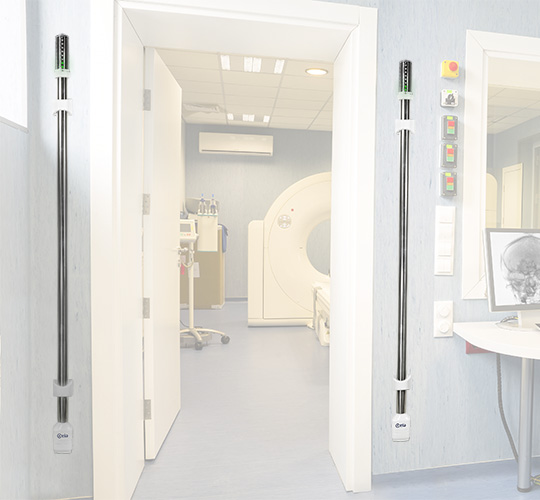

Large number of CEIA MSD^™ ferromagnetic detectors installed

Brochures

Manuals

High sensitivity to ferromagnetic metals, detection over entire height of person, advanced technology, compact design, extremely durable and reliable

Ferromagnetic Detector Management App

Programming of operational parameters and downloading of data logger by smartphone or portable PC
SECURITY: Password protected programming at User and Supervisor level
MULTI-COLOR STATUS AND ALARM WARNING LIGHT
- GREEN LIGHT: Normal operation, no alarm
- YELLOW LIGHT: Detection of ferromagnetic object below alarm threshold
- RED LIGHT: Detection of ferromagnetic object above alarm threshold: Full height alarm indication; Indication proportional to signal intensity; Alarm indication with 5 different localization zones; Full height alarm indication, followed by zonal signalling
- BLINKING RED LIGHT: diagnostics alarm
- BLUE LIGHT: Connecting BT device in progress
ALARM SOUNDER
- Alarm indication for target over the alarm threshold: Fixed tone; Tone proportional to signal intensity; Single pulse for pinpointing target
- Alarm tone can be selected, continuous and intermittent
- Self-diagnostics signal: intermittent tome
BT HEADSET (ACCESSORY): Copies all acoustic indications, with the addition of checking BT connection

LAN port. Ethernet port, PoE Class 0 compliant to IEEE 802.3af/IEEE 802.3at Type 1
IN/OUT port. General purpose connector. Type: 8-pole M12 male. It supports the following connections:
- Power supply input. Voltage: 24Vdc ±10%, 0.25A max
- RS-232 serial communication lines
- Relay output, activated in case of alarm or diagnosis alert. Selectable in normally open or normally closed operation. Rating: 0.4A max, 30Vdc.
- Inhibition input. Galvanically isolated 2-pole connection. Rating: + 5 ÷ 12 Vdc.

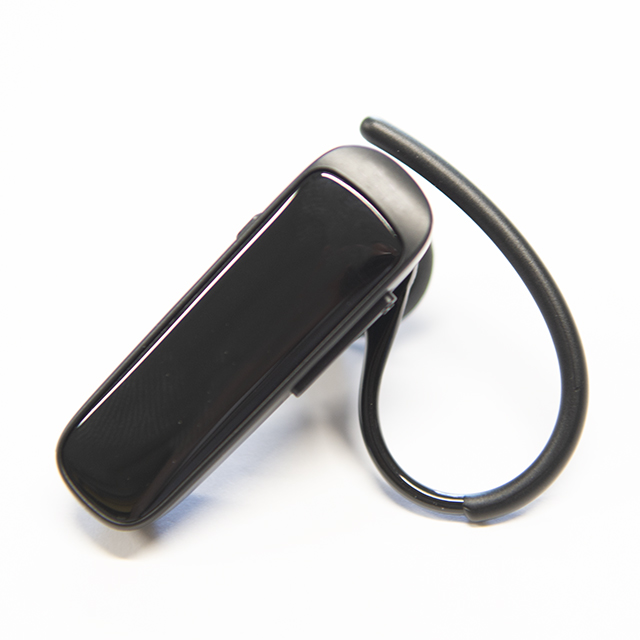

BT audio function activation, headset and charger - code 88919

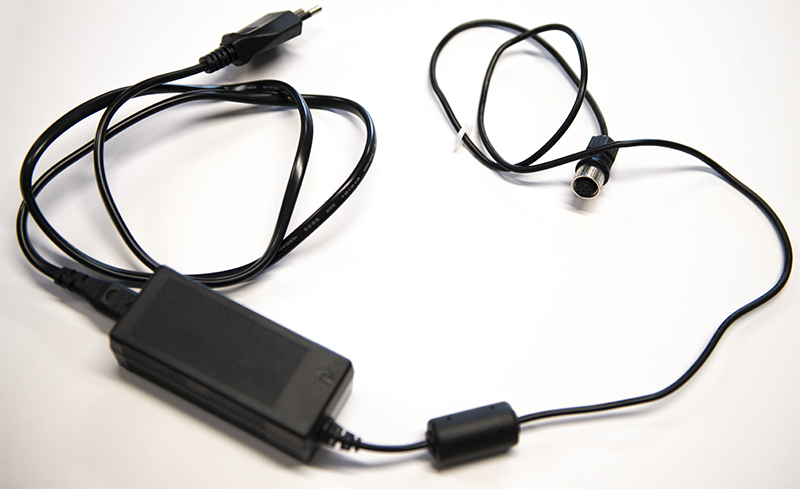

External AC/DC adapter - code 91553

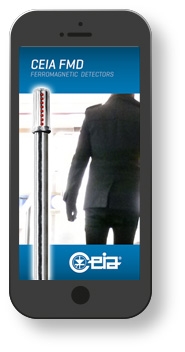

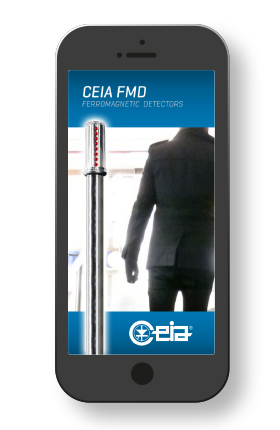

App CEIA FMD: the application allows monitoring of the device, adjustment of the settings and downloading of data logger. Available on Google Play Store. REQUIREMENTS: Android 7.0 or later, BT interface available

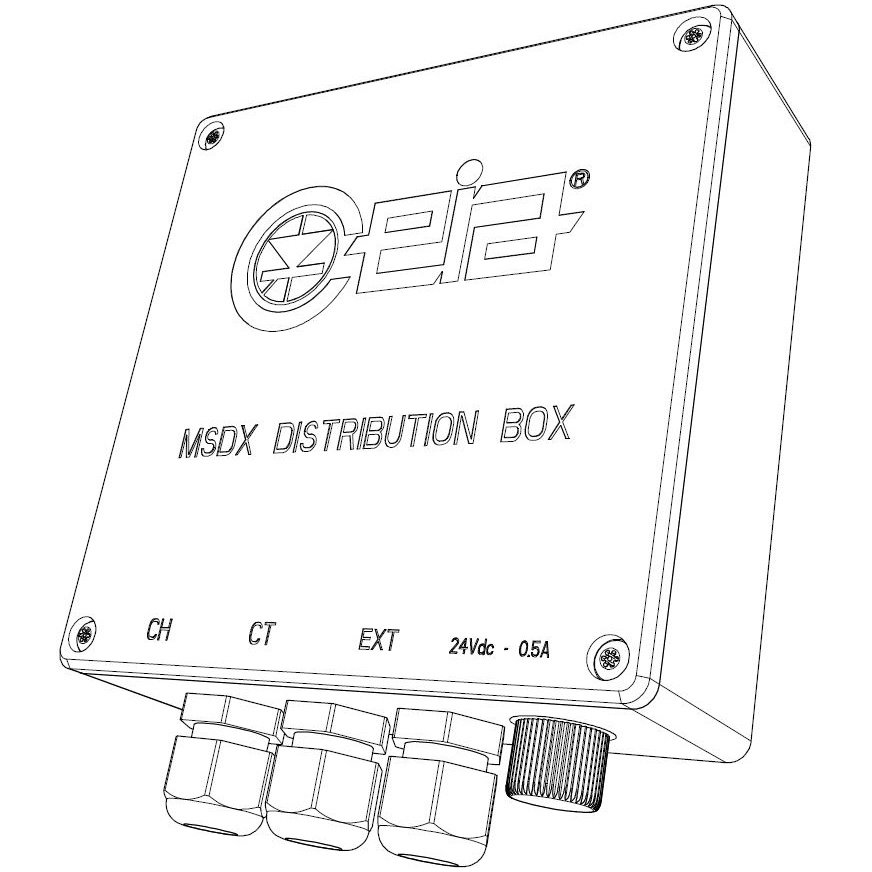

MSD^™X Distribution Box - Accessory to be used for the installation of CEIA MSDW devices, designed to simplify the connections between detectors and external devices. It allows the connection of a single detector (Chain Head) or both (Chain Head and Chain Tail), in order to have a single power supply source. - Code 106913

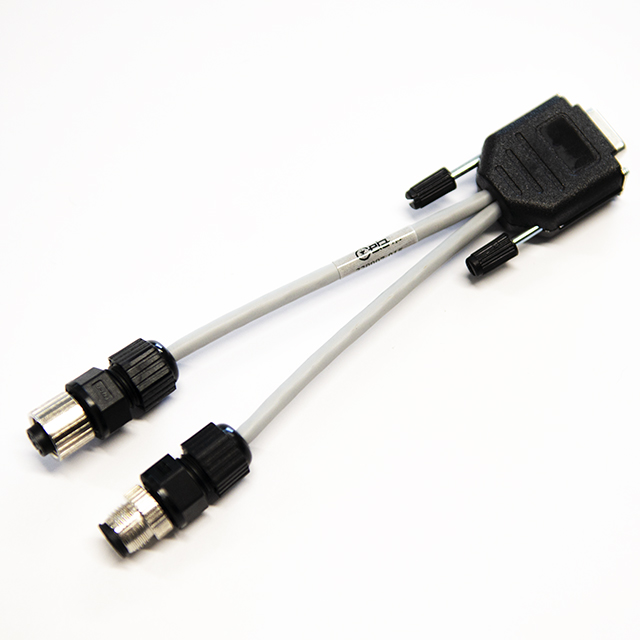

Service cable for RS-232 connection - code 91556
Standing mat: self-adhesive mat with indication of position and rotation - code 94590

Safe for use for pacemakers and other medical implants
Compliant with the applicable electromagnetic Standards on Human Exposure and pacemaker safety
Compliant with and certified to the applicable International Standards for electrical safety and EMC
