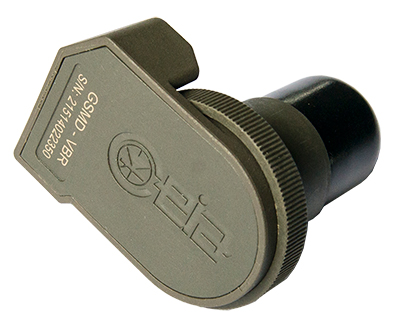

GSMD-VBR
Vibration Signaling Device for CEIA GSMDs
GSMD-VBR
Vibration Signaling Device for CEIA GSMDs
- Plugs directly to the GSMD Headphone Connector
- MIL-D1® and CMD® compatible
- No removal needed when Detector is folded
- No maintenance required
- It allows the operator to turn the internal speaker off when the volume knob is at the minimum
- Low Power Consumption
- Embedded 32-bit microcomputer
- Operating at Full Depth with CMD®/DW
Folleto
Manuales
Plugs directly to the GSMD Headphone Connector
Download Specifications
- Operating Temperature: -30°C to 70°C
- Storage Temperature: -40°C to 80°C
- MTBF: 200,000 cycles @ 20°C ambient temperature
- Power Consumption:
- GSMD Off: 0 mA
- GSMD On: 14 mA
- GSMD in alarm: 80 mA
- Dimensions: 52.5 mm x 37 mm x 35.5 mm
- Weight: 45 grams
- Protection Degree (according to IEC 529): IP68
