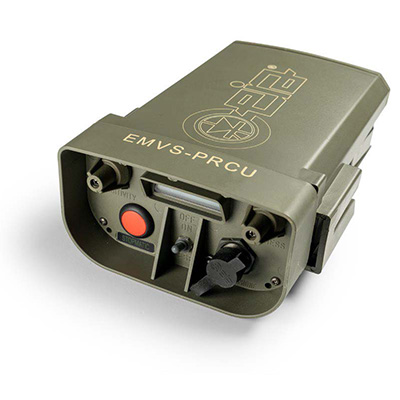

EMVS-PRCU
Wearable Remote Control for EMVS-TL
- Wearable battery-powered radio for remote control and supervision of the EMVS detector array
- Ready to use, factory paired long range wireless link to the RCU (Remote Control Unit) installed on the EMVS vehicle
- Real time transmission of audio and visual indications
- Two-way communication
- Long battery life with built-in battery charger
- Rugged IP68 enclosure complies with MIL-STD-810 standards
Folleto
Manuales
The EMVS-PRCU is a battery self-powered unit that allows remote control of the CEIA EMVS system. It can be used for supervising purposes or in combination with the vehicle's remote driving system with no-operator inside the cockpit.
The EMVS-PRCU is a battery self-powered unit that allows remote control of the CEIA EMVS system. It can be used for supervising purposes or in combination with the vehicle's remote driving system with no-operator inside the cockpit.
The system is ready to use without waiting times for connection. Thanks to a reliable wireless link long distance connection are possible. The EMVS-PRCU remotes real-time audio and visual indication of the EMVS alarms and allows the operator to set the Metal Detector sensitivity and volume as well as to check the state and reset the vehicle's automatic braking system after a stop for detection.
Download Specifications
Battery
- 4 cells size D alkaline or NiMH rechargeable
Operational Time
- 60h (CEIA supplied Rechargeable 10Ah NiMH batteries)
- 80h (alkaline high capacity batteries)
Charging Time
- 6h max with 10Ah NiMH batteries
Radio Link Features
- 2.4GHz Bluetooth 5 LE
- 150m line of sight operating distance
Protection Degree
Temperature
- Storage: -55 to +85 °C
- Operating: -46 to +70 °C
Conformity
Weights
- Remote unit with battery included: 1.6 kg
- External Speaker: 27 g
- Monaural Headphone: 170 g
- GSMD-ACPSA1 AC/DC Power Supply for the built-in battery charger: 390 g
- GSMD-DCPSA1 DC Power Supply Cable with cigarette lighter plug: 90 g
- Transport case: 1.4 kg
