GROUND SEARCH Metal Detectors


DSMD®

Digital deep search Metal Detector for UXO and cluster munitions detection



Company Presentation
ISO 9001 Certification

Visit us at
EOD Technology & Bombing Prevention Summit
National Harbor, MD - United States of America
3 - 5 December 2024
Exhibitor: CEIA USA Ltd.

See upcoming events >>
  • Effective detection of magnetic and non-magnetic UXO and cluster munitions
  • Superior detection depth
  • High discrimination against shallow metal clutter
  • Automatic soil compensation for every type of terrain
  • Modular design with minimal assembly time required
  • Completely digital electronics, with in-field program memory upgrade capability
  • Embedded GPS and inertial navigation system
  • Automatic position and detection data logging for Quality Control
  • Static and dynamic detection, independent of the detector’s rate of advance
  • Operation monitored by graphical interface and a microcomputer-controlled auto diagnostic system with audible, optical and vibration warning signals
  • Fast integrated battery charger

Brochures
Click To View English - US Brochure
Manuals
DSMD

The CEIA DSMD® is an active electromagnetic induction (EMI) device based on the transmission of an alternated, low frequency magnetic field and the reception of the variations caused by buried metal masses.

DGNSS

High Accuracy GNSS Differential Geolocation System

The CEIA DGNSS is a Differential Global Navigation Satellite System for use with CEIA DSMD Metal Detectors, allowing the combined recording of differential georeferencing data, with centrimetic precision, and metal detector output signal strength on an embedded memory. Upon search operations completion, all recorded data can be exported to a PC system for postprocessing, map overlaying, screen visualization and mass storage recording.

DSMD - detail

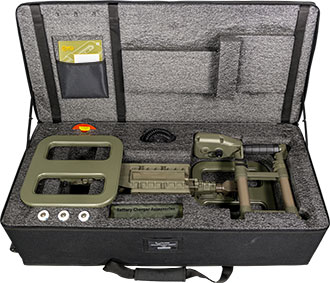

Transport case

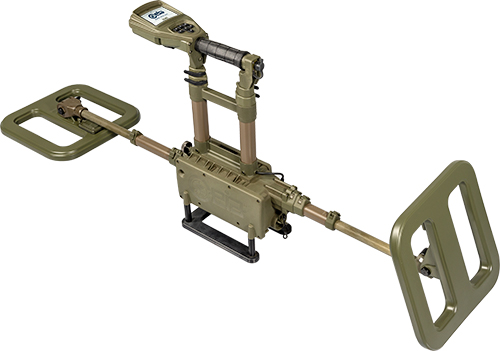

The CEIA DSMD® is an active electromagnetic induction (EMI) device based on the transmission of an alternated, low frequency magnetic field and the reception of the variations caused by buried metal masses.

It is designed for the accurate detection of deeply buried medium-large metal masses, including unexploded ordnance, whilst discriminating against ground magnetic anomalies and metal fragmentation.

The detector comprises a telescopic tube and two probe-antennae which transmit and receive the magnetic field, mounted at the ends of the extensions.

Target indication is by a high-readability colour TFT display on the front panel of the control unit and an acoustic warning signal with adjustable volume control.

The embedded GPS receiver allows real-time data logging capability during operations: GPS information (Date, Time, Latitude, Longitude) can be recorded along with significant points and data, stored into a non-volatile memory at a rate of one event per second.
