Detector per il SOTTOSUOLO
CMD® V2
Compact Metal & Carbon Rod Detector
CMD® V2
Compact Metal & Carbon Rod Detector
- Effective detection of:
- Low & High metallic targets
- Carbon Rods based IEDs
- Non-Metallic Conductive Devices of IEDs
- Short, Single and Multi-Strand Wires
- Unique individual optical and acoustic alarm signaling for Metal and Carbon Rod Detection
- Accurate pin-pointing of the target’s position
- High discrimination capability for adjacent targets
- Extremely high level of electrical and mechanical reliability
- Integrated battery charger
- Long-Lasting battery life
Depliant
Manuali
In 2009, following a growing need to widen the hand-held IED detection capability, CEIA introduced the first-ever electromagnetic Metal & Carbon Rod Dual-Sensor Detector. The CMD® V2 is a very high performance, high-sensitivity Compact Dual-Sensor system designed to detect metal and minimum-metal content targets in conductive and non-conductive soils, including laterite and magnetite, as well as a wide range of unconventional targets such as conductive non-metallic devices (e.g. carbon rods), wires and mercury switches.
One-piece foldable design

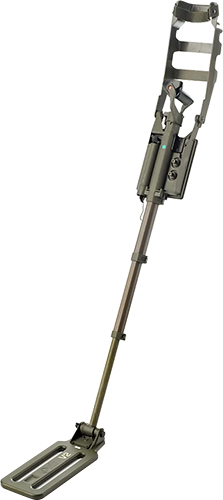

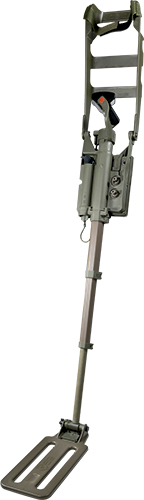

The Dual-Sensor Detector consists of a search head, a control unit, a telescopic pole and an elbow support jointed together in a one-piece design. The detection head is light and the wiring is designed to be protected from any possible damage. The one-piece foldable design allows the CMD® V2 Metal Detector to be operational in a very short time and easily carried everywhere.
The detector is equipped with a built-in Ni-MH battery charger which allows the batteries to be recharged (in 3 hour max) without the need to extract them from the unit.
This also allows full environmental protection of componentsand maximum operational speed for the user.
Ergonomic operation
Intentionally designed to be used easily and comfortably in every working condition, the CMD® V2 can be set up for operation in less than twenty seconds.
The Detector offers the best combination of functional and operational characteristics: it provides the highest ratio between overall dimensions, detection depth and operational weight.
The length of the telescopic pole can be adjusted for operation in upright, kneeling or prone positions.
The special shape of the CMD® V2 search head simultaneously provides the fastest advance rate along with the inspection capability of narrow spaces.
Exclusive automatic soil compensation system
The CMD® V2 does not require any manual calibration; in addition, optimum sensitivity is ensured over all types of terrain due to CEIA’s Exclusive Automatic Soil Compensation System.
Localization of the threats is assisted by an Acoustic Modulation pinpointing system aided by a Visual LED bar graph, which allows the position of the detected item to be identified accurately.
If desired, the LED bar can be masked with a snap-down cover to avoid remote visibility (stealth operations).
Complete support for technical and operational courses
CEIA provides complete support for technical and operational courses, given by certified personnel, either on site or at its own premises. The curriculum includes first and second line maintenance, training for operators and a course for operator instructors:- In country training and assistance
- Proprietary software tools for remote control and oscilloscope features
- Multilingual telephone and online assistance
- Hardware and software upgrade
- Field Programming Key for in-the-field software upgrade
Modern control unit: simple to operate
The watertight control unit and search head can withstand the most stringent environmental requirements and Standards:- Volume adjustment
- Sensitivity adjustment
- Built-in speaker (internal)
- Main switch and spring actuated reset switch
- LED bar indicator of signal intensity
- Snap-down cover
- Battery charger status indicator
- Single Multifunction Connector: Battery charge; Headphone; Accessories; Upgrade
- Color Frequency Indicator
Scarica Specifiche
Power supply
- Types of batteries (2x), ANSI Standard, type C
- 1.2V Ni-MH rechargeable - 1.5V Alkaline (LR14)
Battery life at 20°C (default search program)
- With Ni-MH (6000 mAh) rechargeable batteries: 8 hours
- With alkaline batteries: 6 hours
- Battery charge indicator
Metal alarm
- Adjustable sensitivity
- Audible alarm with adjustable volume and visual LED display (maskable with a snap-down infrared cover)
Carbon rod alarm
- Adjustable sensitivity
- Specific audible alarm with adjustable volume and visual LED display (maskable with a snap-down infrared cover)
Dimensions
- Search head: 350 mm x 140 mm (13.8” x 5.5”)

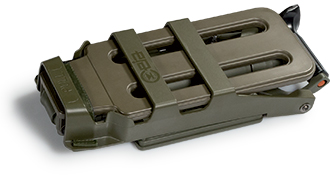

- Folded: 387 mm x 157 mm x 76 mm (15.3” x 6.2” x 3”)
- Fully extended: 1290 mm (50.8”)

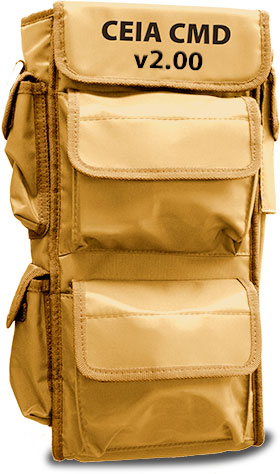

- Carry bag: 395 mm x 200 mm x 110 mm (15.6” x 8” x 4.3”)
Weight
- Metal Detector
- Without batteries: 1,98 kg (4.37 lbs)
- Batteries included: 2,1 kg (4.6 lbs)
- Carry bag: 540 g (1.2 lbs)
- Headphone: 170 g (0.37 lbs)
Operating temperature
- -46 °C to +70 °C (-51°F to 158°F)
Storage temperature
- -55 °C to +85 °C (-67°F to 185°F)
Level of protection
- IP68 (IEC 529)
- Carry bag in water resistant synthetic canvas
Set-up time
- Twenty seconds typical (batteries already in place)
Built-in battery charger power supply
- 90-260V~ power supply adapter
- 12/24Vdc power supply cable fitted with a vehicle cigarette lighter plug
Options
- External loudspeaker
- Rigid transport case
Accessories
- GSMD-FPK: Field Programming Key. Direct connection to the Headphone control unit connector.
- GSMD-VBR: Vibration Signalling Device
- GSMD-HELMET-RDU: Remote Visual/Acoustic slim line signalling device.
- GSMD-TK: Technical Maintenance Tool Kit.It includes all tools required for any maintenance and repair requirements
- GSMD-TPS: Test Pieces Set. It includes various reference samples, designed to test the detection of samples at different depths.
