GSMD®-Helmet RDU
Remote Visual / Acoustic Slim Line Signaling Device
GSMD®-Helmet RDU
Remote Visual / Acoustic Slim Line Signaling Device
- Lightweight, slim line design
- Plugs directly to the GSMD® Headphone Connector
- MIL-D1® and CMD® compatible
- No removal needed when Detector is folded
- No Battery required
- No maintenance required
- Low Power Consumption
- Embedded 32-bit microcomputer
Manuali

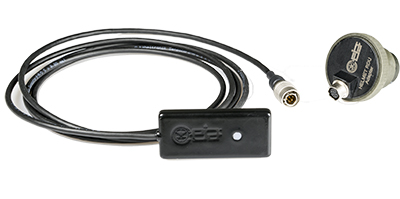

The GSMD®-HELMET-RDU is a very compact signaling device designed to operate in conjunction with CEIA Ground Search Metal Detectors.
The GSMD®-HELMET-RDU is a very compact signaling device designed to operate in conjunction with CEIA Ground Search Metal Detectors.
The device allows to remote the visual and acoustic status / alarm signals inside the helmet of the EOD operator.
LED Intensity Adjustment
The LED intensity can be adjusted rotating the volume metal detector knob located on the control unit to the minimum (anticlockwise) and then, within a second, turning the same knob to a position correspondent to a suitable led light level.
The Led intensity comes to the default level anytime the RDU is disconnected.
Scarica Specifiche
- Operating Temperature: -46°C to 70°C (-51°F to 158°F)
- Storage Temperature: -55°C to 85°C (-67°F to 185°F)
- MTBF: 20,000 hours @ 20°C (68°F)
- Power Consumption:
- GSMD® Off: 20 mA
- GSMD® On: 20.5 mA
- GSMD® in alarm: 22 mA
- Cable length: 180 cm (6 ft)
- Quick release connector to adapter
- Dimensions: 55 mm x 25 mm x 8 mm (2.2” x 1” x 0.3”)
- Weight:
- with cable: 50 g (0.11 lbs)
- w/o cable: 15 g (0.03 lbs)
- adapter: 25 g (0.06 lbs)
- Protection Degree (according to IEC 529): IP44
- Ordering code: GSMD®-HELMET-RDU
